Updated On : Sep-15,2020 Time Investment : ~20 mins

Interactive Choropleth Maps using bqplot

The choropleth maps are quite commonly used to show the distribution of any data variable in various areas of the map. Python has a list of libraries like geopandas, folium, bokeh, ipyleaflet, bqplot, etc which provides map plotting functionalities which include functionality for plotting choropleth map as well. We'll be discussing choropleth maps plotting using bqplot as a part of this tutorial. We have already covered tutorials on plotting various charts using bqplot. We have also created tutorials on the creation of choropleth maps using other python libraries. If you are interested in learning about them then please feel free to go through the links of the references section. As a part of this tutorial, we'll be concentrating on bqplot for choropleth maps using various datasets.

We'll start by importing necessary libraries.

import pandas as pd
import numpy as np

import warnings
warnings.filterwarnings("ignore")

Load Datasets

We'll be using below mentioned two datasets for plotting various choropleth maps. Both datasets are easily available from kaggle. We suggest that you download both datasets to follow along.

  • World happiness dataset - It has information about attributes like happiness score, perception of corruption, healthy life expectancy, social support by govt., freedom to make life choices, generosity, and GDP per capita for various countries of the earth. We'll be loading it as a pandas dataframe.

  • US States Population - It has information about US states population in 2018.

We have loaded both datasets as pandas dataframe.

happiness_df = pd.read_csv("datasets/world_happiness_2019.csv")
happiness_df.head()
Overall rank Country or region Score GDP per capita Social support Healthy life expectancy Freedom to make life choices Generosity Perceptions of corruption
0 1 Finland 7.769 1.340 1.587 0.986 0.596 0.153 0.393
1 2 Denmark 7.600 1.383 1.573 0.996 0.592 0.252 0.410
2 3 Norway 7.554 1.488 1.582 1.028 0.603 0.271 0.341
3 4 Iceland 7.494 1.380 1.624 1.026 0.591 0.354 0.118
4 5 Netherlands 7.488 1.396 1.522 0.999 0.557 0.322 0.298
us_state_population_2018 = pd.read_csv("datasets/State Populations.csv")
us_state_population_2018.head()
State 2018 Population
0 California 39776830
1 Texas 28704330
2 Florida 21312211
3 New York 19862512
4 Pennsylvania 12823989

Below we have loaded geo json files for the world, Europe, US states, and US counties which we'll be using in the future. We'll be using this geo json data for creating a mapping dictionary for mapping from the id of map feature (country, state, country, etc.) to the value of the data variable. We need to pass this mapping from feature id to data variables values to the bqplot plotting method.

#EuropeMap, USCountiesMap, USStatesMap, WorldMap
from bqplot import topo_load

europe = topo_load("map_data/EuropeMap.json")
us_counties = topo_load("map_data/USCountiesMap.json")
us_states = topo_load("map_data/USStatesMap.json")
world_map = topo_load("map_data/WorldMap.json")

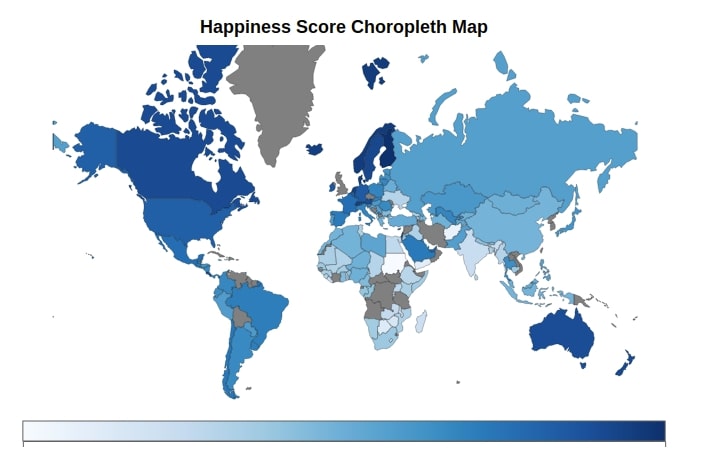

World Happiness Choropleth Map

The first choropleth map that we'll create using bqplot is the world happiness choropleth map which will plot the happiness score of each country on the world map.

Below we have created a method named map_data_to_color_mapping() which accepts map data which is geo json data loaded earlier as the first parameter and column from the dataframe as the second attribute and returns mapping from feature id to dataframe column value.

def map_data_to_color_mapping(map_data, column="Score"):
    """
    Function to Map Country ID to Column Value from Happiness DataFrame
    """
    name_to_id_mapping = []
    for entry in map_data:
        if entry["properties"]["name"] == "Russian Federation":
            name_to_id_mapping.append(("Russia", entry["id"]))
        else:
            name_to_id_mapping.append((entry["properties"]["name"], entry["id"]))

    name_to_id_mapping = dict(name_to_id_mapping)

    color = []
    for name, idx in name_to_id_mapping.items():
        score = happiness_df[happiness_df["Country or region"].str.contains(name)][column].values
        if len(score) > 0:
            color.append((idx,score[0]))
    return dict(color)

The below cell includes the total code for creating a choropleth map using bqplot.

First, we have created a map object using Map() constructor passing it mapping from feature id to data variable, world map geo json data, scales, projection. We have used a Mercator projection for our purpose. We have also provided the default color as grey which will be used when mapping for any feature is not available.

Then we have created a color axis using a color scale. We also have included a tooltip that will highlight the happiness score for each country when the mouse hovers over it.

At last, we have created a figure by combining, map object, and axis. We have also provided the title and title style to the Figure() constructor.

The choropleth created below is based on the bqplot internal object model API. If you are interested in learning about chart creating using it then please feel free to explore our tutorial on the same to get the in-depth ideas.

from bqplot import Map, Mercator, Figure, ColorScale, ColorAxis, Mercator, Tooltip

map_chart = Map(color=map_data_to_color_mapping(world_map["objects"]["subunits"]["geometries"]),
                map_data=world_map,
                colors={'default_color': 'Grey'},
                scales={'color': ColorScale(scheme='Blues'), 'projection':Mercator()})

axes = ColorAxis(scale=ColorScale(scheme='Blues'))

map_chart.tooltip = Tooltip(fields=['color'], labels=["Happiness Score"])

Figure(marks=[map_chart], axes=[axes],
       title_style={"font-weight":"bold"},
       title="Happiness Score Choropleth Map")

Interactive Choropleth Maps using bqplot

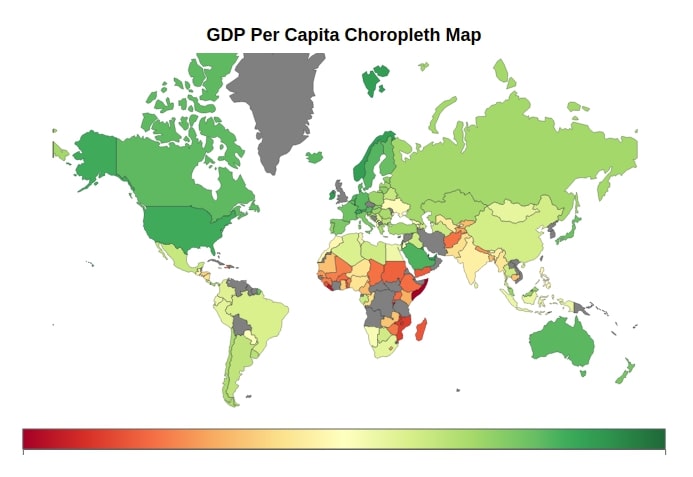

World GDP Per Capita Choropleth Map

The second choropleth map that we have created using bqplot is the world countries’ GDP per capita choropleth map. We have used exactly the same code as the last example with only a change in the column name from the dataframe which is now GDP per capita. We have also used different colormap.

map_chart = Map(color=map_data_to_color_mapping(world_map["objects"]["subunits"]["geometries"], column="GDP per capita"),
                map_data=world_map,
                colors={'default_color': 'Grey'},
                scales={'color': ColorScale(scheme='RdYlGn'), 'projection':Mercator()})

axes = ColorAxis(scale=ColorScale(scheme='RdYlGn'))

map_chart.tooltip = Tooltip(fields=['color'], labels=["GDP Per Capita"])

Figure(marks=[map_chart], axes=[axes],
       title_style={"font-weight":"bold"},
       title="GDP Per Capita Choropleth Map")

Interactive Choropleth Maps using bqplot

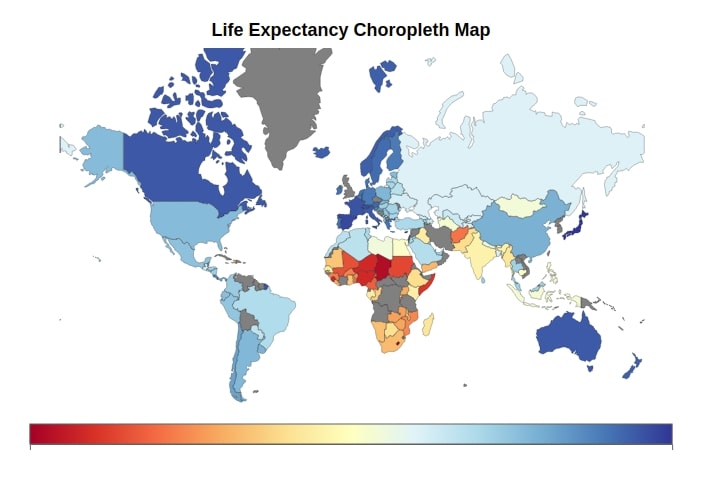

World Life Expectancy Choropleth Map

The third choropleth map depicts the life expectancy of various countries on earth. We have used exactly the same code as previous examples with only change in column name and colormap.

map_chart = Map(color=map_data_to_color_mapping(world_map["objects"]["subunits"]["geometries"], column="Healthy life expectancy"),
                map_data=world_map,
                colors={'default_color': 'Grey'},
                scales={'color': ColorScale(scheme='RdYlBu'), 'projection':Mercator()})

axes = ColorAxis(scale=ColorScale(scheme='RdYlBu'))

map_chart.tooltip = Tooltip(fields=['color'], labels=["Life Expectancy"])

Figure(marks=[map_chart], axes=[axes],
       title_style={"font-weight":"bold"},
       title="Life Expectancy Choropleth Map")

Interactive Choropleth Maps using bqplot

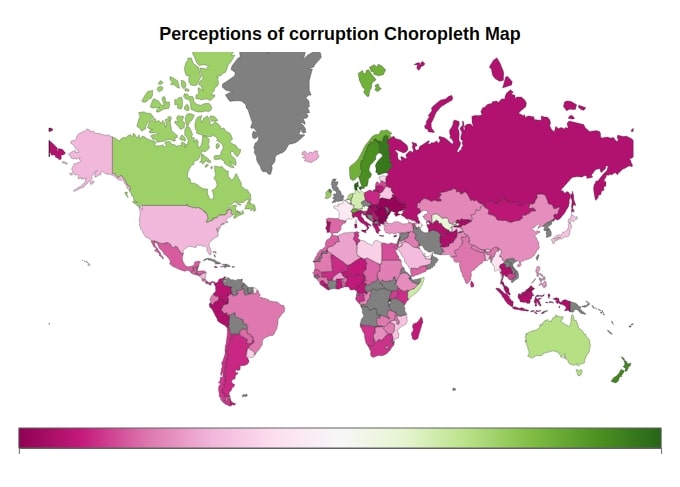

World Perception of Corruption Choropleth Map

The fourth colormap is also a world choropleth map where the perception of corruption for each country is presented with different colors based on corruption values in the world happiness dataframe.

map_chart = Map(color=map_data_to_color_mapping(world_map["objects"]["subunits"]["geometries"], column="Perceptions of corruption"),
                map_data=world_map,
                colors={'default_color': 'Grey'},
                scales={'color': ColorScale(scheme='PiYG'), 'projection':Mercator()})

axes = ColorAxis(scale=ColorScale(scheme='PiYG'))

map_chart.tooltip = Tooltip(fields=['color'], labels=["Perceptions of corruption"])

Figure(marks=[map_chart], axes=[axes],
       title_style={"font-weight":"bold"},
       title="Perceptions of corruption Choropleth Map")

Interactive Choropleth Maps using bqplot

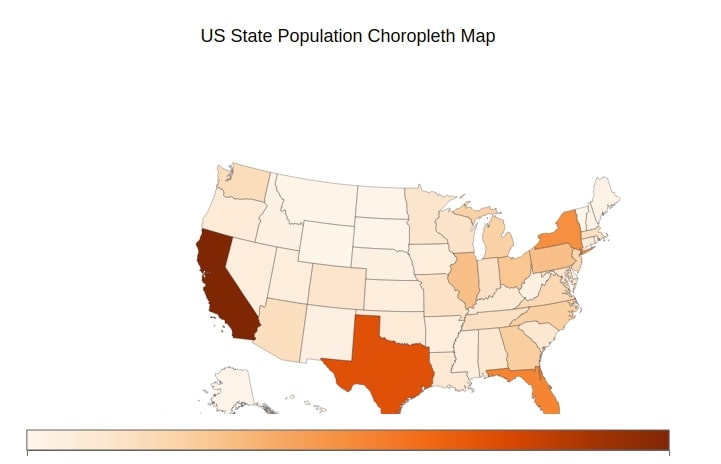

US State-wise Population Choropleth Map

The fifth choropleth map that we have created using bqplot is the US state population choropleth map. We'll be using the US state’s population dataset loaded earlier.

We have created the same method as earlier which takes geo json data and column from the dataframe as input and returns mapping from features id to data variable values.

def map_data_to_color_mapping(map_data, column="2018 Population"):
    """
    Function to Map State ID to Column Value from DataFrame
    """
    name_to_id_mapping = []
    for entry in map_data:
        if entry['properties']:
            name_to_id_mapping.append((entry["properties"]["name"], entry["id"]))

    name_to_id_mapping = dict(name_to_id_mapping)

    color = []
    for name, idx in name_to_id_mapping.items():
        score = us_state_population_2018[us_state_population_2018["State"].str.contains(name)][column].values
        if len(score) > 0:
            color.append((idx,score[0]))
    return dict(color)

Below we have given code to create a choropleth map for US states. Our code is almost the same as the previous example with the only change is a projection which is changed from Mercator() to AlbersUSA(). All other things are almost the same as previous examples.

from bqplot import AlbersUSA

map_chart = Map(color=map_data_to_color_mapping(us_states["objects"]["subunits"]["geometries"]),
                map_data=us_states,
                colors={'default_color': 'Grey'},
                scales={'color': ColorScale(scheme='Oranges'), 'projection':AlbersUSA()})

axes = ColorAxis(scale=ColorScale(scheme='Oranges'))

map_chart.tooltip = Tooltip(fields=['color'], labels=["Population"])

Figure(marks=[map_chart], axes=[axes],
       title="US State Population Choropleth Map")

Interactive Choropleth Maps using bqplot

This ends our small tutorial explaining how to plot choropleth maps using bqplot. Please feel free to let us know your views in the comments section.
