Updated On : Sep-24,2020 Time Investment : ~20 mins

Simple 2D Animation in Python using bqplot & ipywidgets

The bqplot has become a very convenient library for plotting data visualizations in python as it’s built on top of ipywidgets. Each component of the bqplot chart is an ipywidgets widget and the whole chart itself is a widget as well. This provides a very flexible framework that lets us update the data of the chart even after the chart is plotted and changes will reflect immediately on the chart. The ipywidgets library itself is built on traitlets frameworks which provides a framework to monitor attribute of classes and let us take actions by implementing callbacks. As a part of this tutorial, we'll be making simple 2D visualizations using bqplot and ipywidgets libraries.

We have already published a list of tutorials which can provide a base for this tutorial if the reader does not have a background on bqplot or ipywidgets:

We suggest that you go through these tutorials if you do not have a background on bqplot or ipywidgets as it'll help you grasp code fast.

We'll start the tutorial by importing the necessary libraries.

import numpy as np
import pandas as pd

import bqplot.pyplot as bplt
import ipywidgets as widgets

import time

pd.set_option("display.max_columns", 50)

We'll now explain simple 2d animations with few examples. All our examples consist of below mentioned common steps:

  • Create bqplot Chart
  • Create ipywidgets Button
  • Create callback function for the button which will update chart data
  • Register callback with button using on_click()
  • Create UI combining button and bqplot figure using ipywidgets layout options.

Example 1

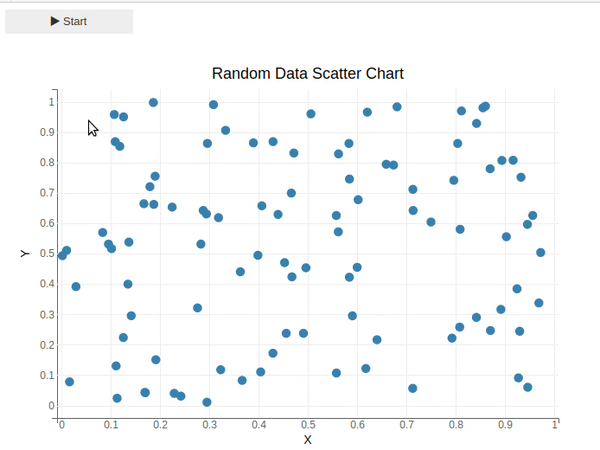

Our first example consists of simple animation based on a scatter plot in bqplot. We'll be creating a simple scatter plot consisting of 100 random points. We have used bqplot's pyplot API to create a scatter chart of 100 random points below.

## Chart Creation Logic
colors= ["red", "green", "blue", "orangered", "tomato", "lawngreen", "lime", "pink", "gray", "black"]

fig = bplt.figure(animation_duration=1000, title="Random Data Scatter Chart")
fig.layout.width="700px"
fig.layout.height="500px"

x = np.random.rand(100)
y = np.random.rand(100)
scat = bplt.scatter(x,y)

bplt.xlabel("X")
bplt.ylabel("Y")

bplt.xlim(0,1)
bplt.ylim(0,1);

Below we have created a simple ipywidgets button.

btn = widgets.Button(description="Start", icon="play")

Below we have created a callback function which will be called each time a button is clicked. In the logic of the callback function, we are looping 10 times, generating 100 new random points, and updating chart data with this new 100 points. We then stop for 1 second before proceeding with the next iteration. This loop of 10 iterations with a pause of 1 second between each iteration will give us simple animation.

Please make a note that we are updating scatter data using the hold_sync() context of the scatter chart. The main reason for this is that it'll update data at the same time synchronously.

## Callback to Update Chart
def update_scatter_chart(btn):
    for i in range(10):
        x = np.random.rand(100)
        y = np.random.rand(100)
        idx = np.random.choice(np.arange(len(colors)))
        with scat.hold_sync():
            scat.x = x
            scat.y = y
            scat.colors = [colors[idx]]
        time.sleep(1)

btn.on_click(update_scatter_chart)

Below we have combined button and scatter chart figure into one UI using ipywidgets VBox() layout which will layout widgets passed to it vertically. We can click the button and it'll start the animation by calling the callback function.

## UI Combining Button & Chart
widgets.VBox([btn, fig])

Simple 2D Animation in Python using bqplot & ipywidgets

Example 2

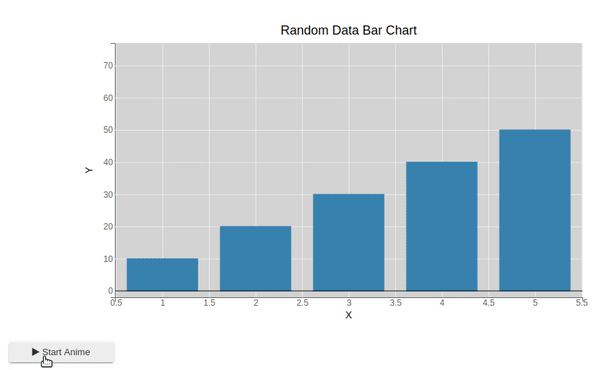

Our second example consists of the animation of the bar chart. We have created a simple bar chart of 7 bars each having a different lengths. We have first created a simple bar chart using default heights and colors.

We have then created a button widget and a callback function as usual. The callback function will again loop 15 iterations and each time, it'll shuffle the heights of the bar chart and update new heights into the chart. It'll pause for 1 second between each iteration to give us simple animation.

## Chart Creation Logic
colors= ["red", "green", "blue", "orangered", "tomato", "lawngreen", "lime", "black"]
heights = [10, 20, 30, 40, 50, 60, 70]

fig = bplt.figure(animation_duration=1000,
                  title="Random Data Bar Chart",
                  fig_margin={'top':60, 'bottom':60, 'left':150, 'right':150},
                  background_style={'fill':"lightgray"})

bar = bplt.bar(x=[1,2,3,4,5],y=heights)

bplt.xlabel("X")
bplt.ylabel("Y")

bplt.ylim(0,75);

## Callback to Update Chart
def update_bar_chart(btn):
    for i in range(15):
        idx = np.random.choice(np.arange(len(colors)))
        np.random.shuffle(heights)
        with bar.hold_sync():
            bar.y = heights
            bar.colors = [colors[idx]]
        time.sleep(1)

btn = widgets.Button(description="Start Anime", icon="play")

btn.on_click(update_bar_chart)

widgets.VBox([fig, btn])

Simple 2D Animation in Python using bqplot & ipywidgets

Example 3

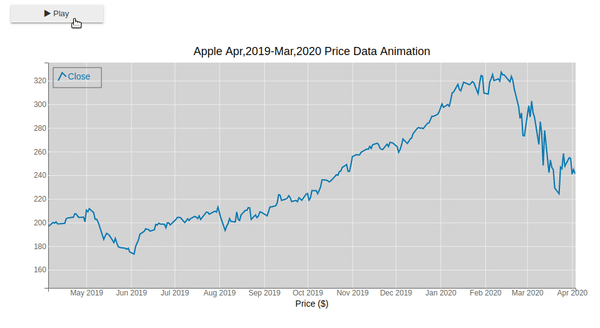

Our third example of creating simple animation using bqplot consist of a line chart. We'll be loading the apple OHLC dataset for the same. The apple OHLC dataset is easily available from yahoo finance. We'll be plotting the first line chart with prices of the close price of the stock. We have then created a callback function that will loop 10 times and each time chooses between Open, Close, High, Low and Adj Close prices to update the line chart. The steps followed to create this animation are the same as previous examples.

apple_df = pd.read_csv("~/datasets/AAPL.csv", index_col=0, parse_dates=True)
apple_df.head()
Open High Low Close Adj Close Volume
Date
2019-04-05 196.449997 197.100006 195.929993 197.000000 194.454758 18526600
2019-04-08 196.419998 200.229996 196.339996 200.100006 197.514709 25881700
2019-04-09 200.320007 202.850006 199.229996 199.500000 196.922470 35768200
2019-04-10 198.679993 200.740005 198.179993 200.619995 198.027985 21695300
2019-04-11 200.850006 201.000000 198.440002 198.949997 196.379578 20900800
## Chart Creation Logic
cols = ["Open","High","Low","Close","Adj Close"]

colors= ["red", "green", "blue", "orangered", "tomato", "lawngreen", "lime", "black"]

fig = bplt.figure(animation_duration=1000, background_style={'fill':"lightgray"},
                  legend_location = "top-left",
                  title="Apple Apr,2019-Mar,2020 Price Data Animation ")

line = bplt.plot(x=apple_df.index,y=apple_df["Close"],
                 display_legend=True, labels=["Close"])

bplt.xlabel("Date")
bplt.xlabel("Price ($)")

bplt.ylim(150, 330)

## Callback to Update Chart
def update_line_chart(btn):
    for i in range(10):
        time.sleep(1)
        idx1 = np.random.choice(np.arange(len(colors)))
        idx2 = np.random.choice(np.arange(len(cols)))
        line.y = apple_df[cols[idx2]]
        line.colors = [colors[idx1]]
        line.labels=[cols[idx2]]

btn = widgets.Button(description="Play", icon='play')

btn.on_click(update_line_chart)

widgets.VBox([btn, fig])

Simple 2D Animation in Python using bqplot & ipywidgets

Example 4

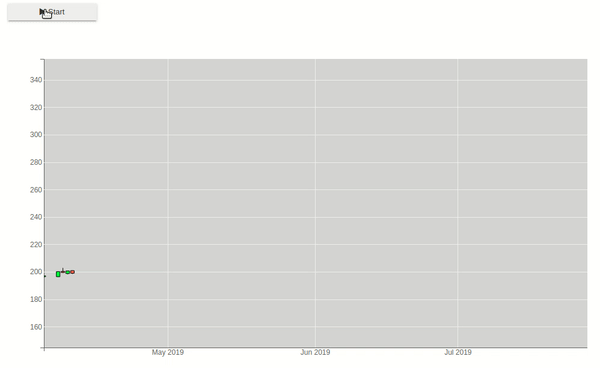

Our fourth example for explaining simple animation consist of a candle stick chart of apple data that we loaded as a part of the previous example. We'll first plot a simple candlestick chart for the first 5 days. We have then created a callback function which will loop through all other prices and keep on adding candlestick chart values for them by pausing for 0.2 seconds between each iteration to create animation.

## Chart Creation Logic
rng = pd.date_range(start="2019-4-5", periods=5, freq="B")
int_df = apple_df[apple_df.index.isin(rng)]

fig = bplt.figure(animation_duration=200,
                  background_style={'fill':"lightgray"},
                  title="Apple Apr,2019- Mar,2020 Candlestick")

fig.layout.height="600px"

fig.layout.width="3000px"

ohlc = bplt.ohlc(x=int_df.index, y = int_df[["Open", "High", "Low", "Close"]].values,
                 colors=["lime", "tomato"],)

bplt.xlim(apple_df.index[0], apple_df.index[-1])
bplt.ylim(150, 350)

bplt.xlabel("Date");

## Callback to Update Chart
def update_candlestick(btn):
    for i in range(apple_df.shape[0]):
        time.sleep(0.2)
        rng = pd.date_range(start="2019-4-5", periods=5+i, freq="B")
        int_df = apple_df[apple_df.index.isin(rng)]

        with ohlc.hold_sync():
            ohlc.x = rng
            ohlc.y = int_df[["Open", "High", "Low", "Close"]].values

btn = widgets.Button(description="Start", icon="play")

btn.on_click(update_candlestick)

widgets.VBox([btn, fig])

Simple 2D Animation in Python using bqplot & ipywidgets

Example 5

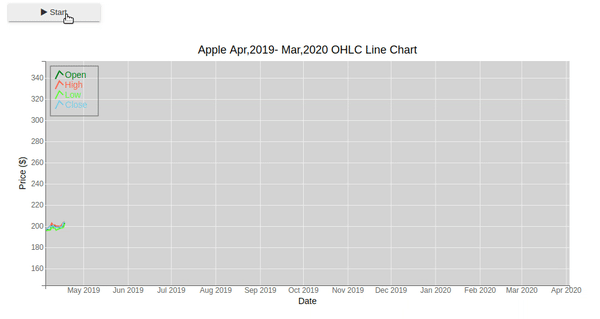

Our fifth example of simple 2D animation consists of a line chart of Apple OHLC prices. We are first plotting a simple line chart that shows Apple OHLC prices for the first 10 days. We then loop through the remaining price data one by one updating the chart by adding these new price lines using for-loop iteration when the button is clicked. This will give us an animation of moving lines.

## Chart Creation Logic
rng = pd.date_range(start="2019-4-5", periods=10, freq="B")
int_df = apple_df[apple_df.index.isin(rng)]

fig = bplt.figure(animation_duration=100, legend_location="top-left",
                  background_style={'fill':"lightgray"},
                  title="Apple Apr,2019- Mar,2020 OHLC Line Chart")

line1 = bplt.plot(x=int_df.index, y = int_df["Open"].values, colors=["green"], labels=["Open"], display_legend=True)
line2 = bplt.plot(x=int_df.index, y = int_df["High"].values, colors=["tomato"], labels=["High"], display_legend=True)
line3 = bplt.plot(x=int_df.index, y = int_df["Low"].values, colors=["lawngreen"], labels=["Low"], display_legend=True)
line4 = bplt.plot(x=int_df.index, y = int_df["Close"].values, colors=["skyblue"], labels=["Close"], display_legend=True)

bplt.xlim(apple_df.index[0], apple_df.index[-1])
bplt.ylim(150, 350)

bplt.xlabel("Date")
bplt.ylabel("Price ($)")

## Callback to Update Chart
def update_line_charts(btn):
    for i in range(apple_df.shape[0]):
        time.sleep(0.1)
        rng = pd.date_range(start="2019-4-5", periods=10+i+1, freq="B")
        int_df = apple_df[apple_df.index.isin(rng)]

        with line1.hold_sync():
            line1.x = rng
            line1.y = int_df["Open"].values

        with line2.hold_sync():
            line2.x = rng
            line2.y = int_df["High"].values

        with line3.hold_sync():
            line3.x = rng
            line3.y = int_df["Low"].values

        with line4.hold_sync():
            line4.x = rng
            line4.y = int_df["Close"].values

btn = widgets.Button(description="Start", icon="play")

btn.on_click(update_line_charts)

widgets.VBox([btn, fig])

Simple 2D Animation in Python using bqplot & ipywidgets

Example 6

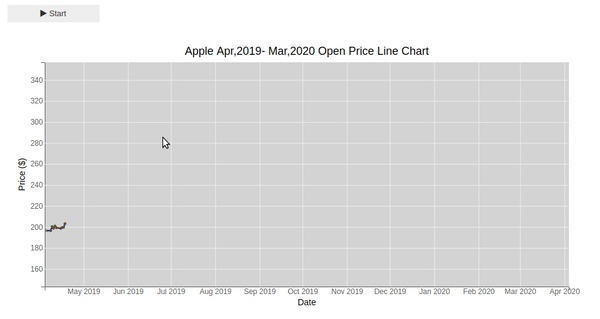

Our last animation consists of a line and a scatter chart. We'll plot a simple line and scatter chart for the first 10 days of apple open prices. We'll then loop through the remaining prices and add them one by one to the chart pausing between each iteration for 0.1 second each time callback is called by clicking on the button. This will give us animation which will show us the moving line and points getting added to the chart.

## Chart Creation Logic
rng = pd.date_range(start="2019-4-5", periods=10, freq="B")
int_df = apple_df[apple_df.index.isin(rng)]

fig = bplt.figure(animation_duration=100, legend_location="top-left",
                  background_style={'fill':"lightgray"},
                  title="Apple Apr,2019- Mar,2020 Open Price Line Chart")

line = bplt.plot(x=int_df.index, y = int_df["Open"].values, colors=["blue"])

scat = bplt.scatter(x=int_df.index, y = int_df["Open"].values,
                    colors=["red"],
                    default_size=10,
                    opacity=[0.1],
                    stroke="green", stroke_width=1
                    )

bplt.xlim(apple_df.index[0], apple_df.index[-1])
bplt.ylim(150, 350)

bplt.xlabel("Date")
bplt.ylabel("Price ($)");

## Callback to Update Chart
def update_line_scatter_chart(btn):
    for i in range(apple_df.shape[0]-10):
        time.sleep(0.1)
        rng = pd.date_range(start="2019-4-5", periods=10+(i+1), freq="B")
        int_df = apple_df[apple_df.index.isin(rng)]

        with line.hold_sync():
            line.x = rng
            line.y = int_df["Open"].values

        with scat.hold_sync():
            scat.x = rng
            scat.y = int_df["Open"].values

btn = widgets.Button(description="Start", icon='play')

btn.on_click(update_line_scatter_chart)

widgets.VBox([btn, fig])

Simple 2D Animation in Python using bqplot & ipywidgets

This ends our simple tutorial explaining how we can create simple 2D animation using bqplot and ipywidgets. Please feel free to let us know your views in the comments section.
