Updated On : Aug-20,2022 Time Investment : ~60 mins

CatBoost - An In-Depth Guide [Python API]

> What is CatBoost?

Catboost is an open-source machine learning library that provides a fast and reliable implementation of gradient boosting on decision trees algorithm (gradient boosted decision trees). Gradient boosted trees is a type of gradient booting machines algorithm where all estimators of ensemble are decision trees. It combines predictions of these weak tree learners to predict final output.

It can be used for classification, regression, ranking, and other machine learning tasks.

Catboost is developed by Yandex researchers and developers. It's used by various companies for tasks like search, recommendation systems, personal assistants, self-driving cars, weather prediction, etc.

> Why Use "CatBoost" over Other Python Gradient Boosting Libraries?

Catboost provided support for handling categorical and text features of the data without the developer needing to handle them separately.

Catboost also provides support for grid search and randomized search which lets us try out a list of values for parameters to find the best combination of parameters that gives the best results.

Catboost algorithm gives quite a good accuracy with default parameter settings.

Apart from this, catboost also provides support for running the training process on GPU. It even lets us run the training process on multiple GPUs with simple configurations.

Catboost provides API in Python and R.

> What Can You Learn From This Article?

As a part of this tutorial, we have explained how to use Python library CatBoost to solve machine learning tasks (Classification & Regression). We have explained majority of CatBoost API with simple and easy-to-understand examples.

Apart from training models & making predictions, we have explained concepts like hyperparameters tuning, cross-validation, saving & loading model, recovering from interrupted training, early stopping to avoid overfitting, creating custom loss function, creating a custom evaluation metric, etc.

All our examples are trained on toy datasets (structured - tabular) available from scikit-learn to keep things simple and easy to grasp.

One of our sections at last also explains how to use CatBoost with text datasets.

Tutorial is designed to get individuals started with using CatBoost and learn end-to-end Python API of Catboost.

> Which Other Python Libraries Provides Implementation Of Gradient Boosted Trees?

> How to Install CatBoost?

  • PIP
    • pip install -U catboost
  • Conda
    • conda install catboost

Below, we have listed important sections of tutorial to give an overview of the material covered. We know that the list below is big but you can skip some sections of tutorial which has a theory or repeat example of some concepts. We have included NOTE in those sections so you can skip them to complete tutorial faster. You can then refer to those sections in your free time or as per need.

Important Sections Of Tutorial

  1. Load Datasets for Tutorial
    • Boston Housing Dataset for Regression Tasks
    • Breast Cancer Dataset for Binary Classification Tasks
    • Wine Dataset for Multi-Class Classification Tasks
  2. CatBoost Models/Estimators at High-Level
  3. CatBoost: Regression Example
  4. CatBoost: Regression (Pool Data Structure to Represent Datasets)
    • Important Parameters Of "Pool()" Constructor
  5. CatBoost: Binary Classification Example
  6. CatBoost: Multi-Class Classification Example
  7. CatBoostRegressor (Scikit-Learn Like API)
  8. CatBoostClassifier (Scikit-Learn Like API)
    • Binary Classification Example
    • Multi-Class Classification Example

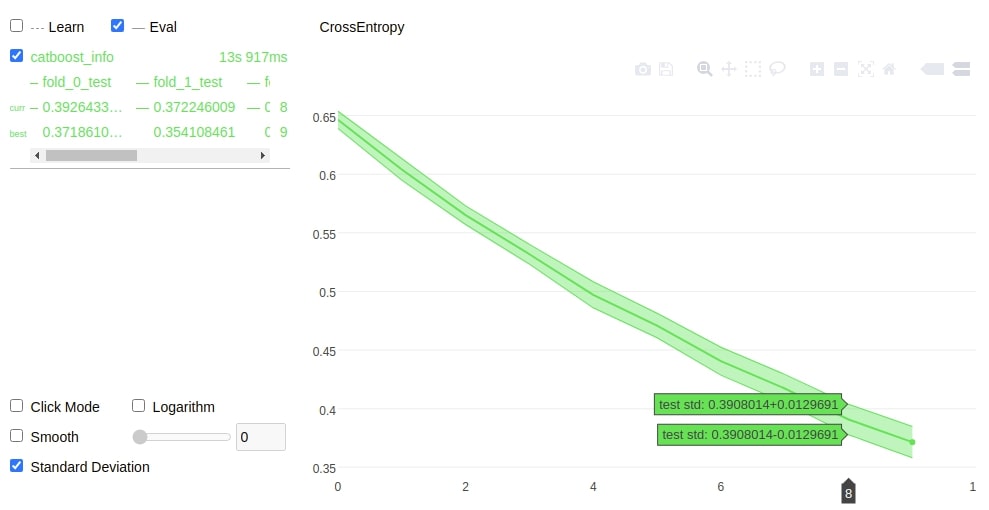

  9. Cross Validation
  10. Saving and Loading Model
  11. Plotting Functionalities in CatBoost

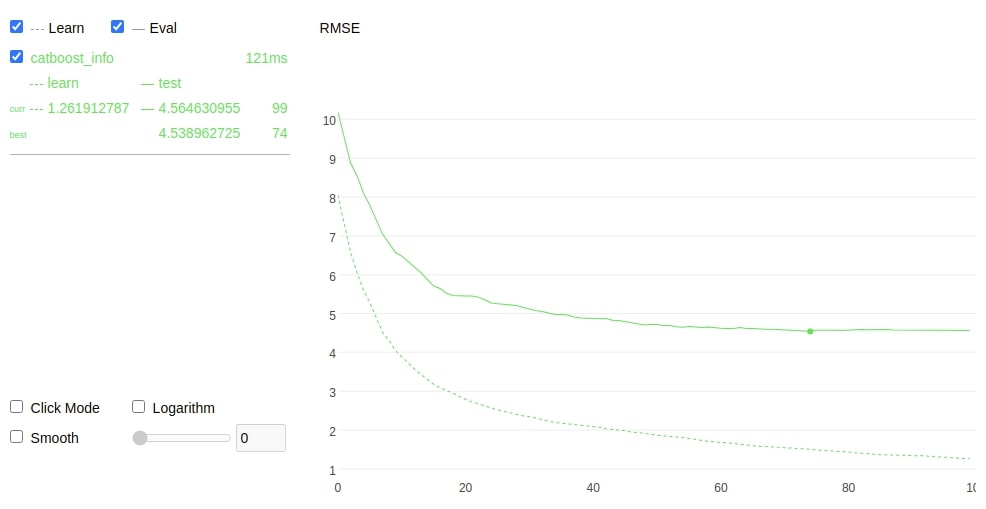

    • Visualize Training Loss and Metric Values

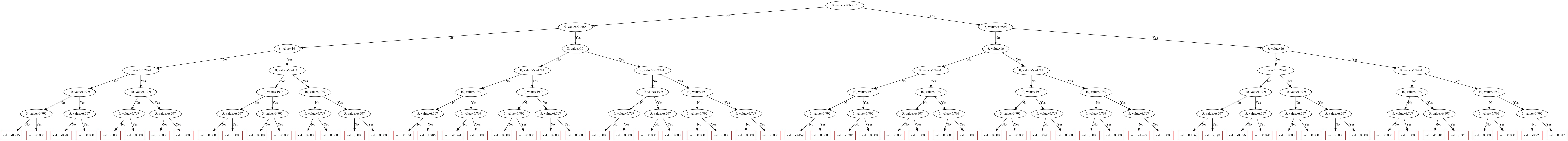

    • Visualize Individual Tree of Ensemble using "plot_tree()"

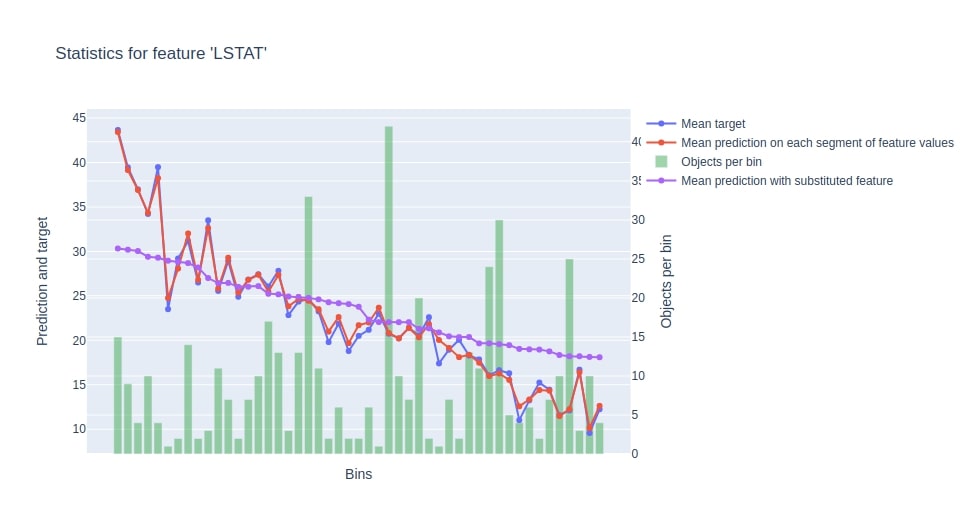

    • Visualize Important Statistics of Data Features using "calc_feature_statistics()"

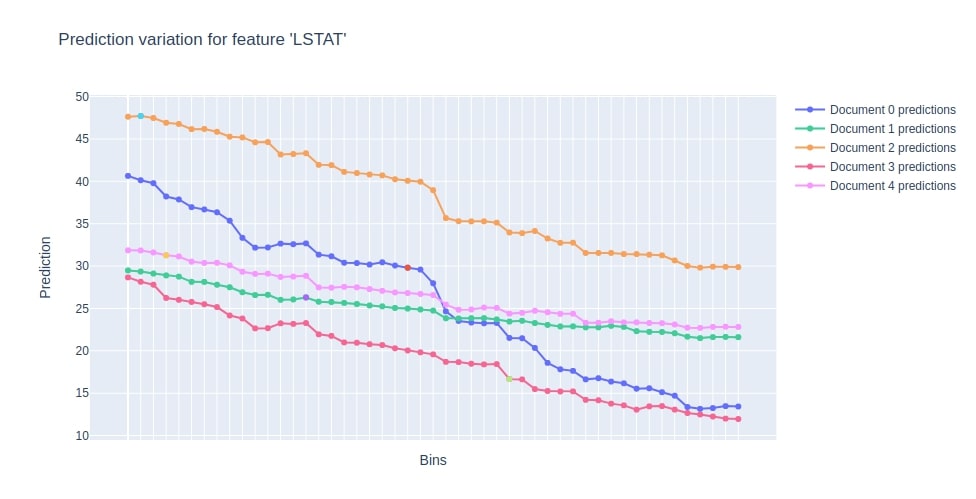

    • Visualize Individual Predictions using "plot_predictions()"

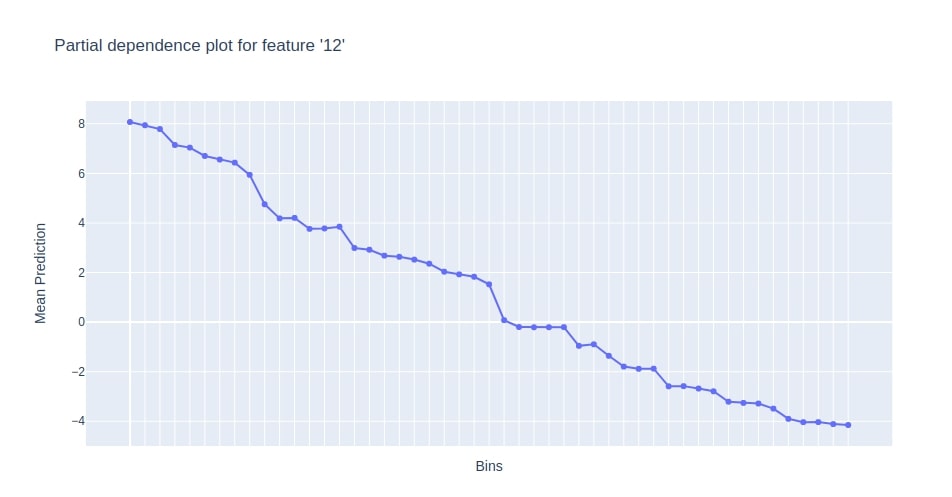

    • Partial Dependence Plot of Features using "plot_partial_dependence()"

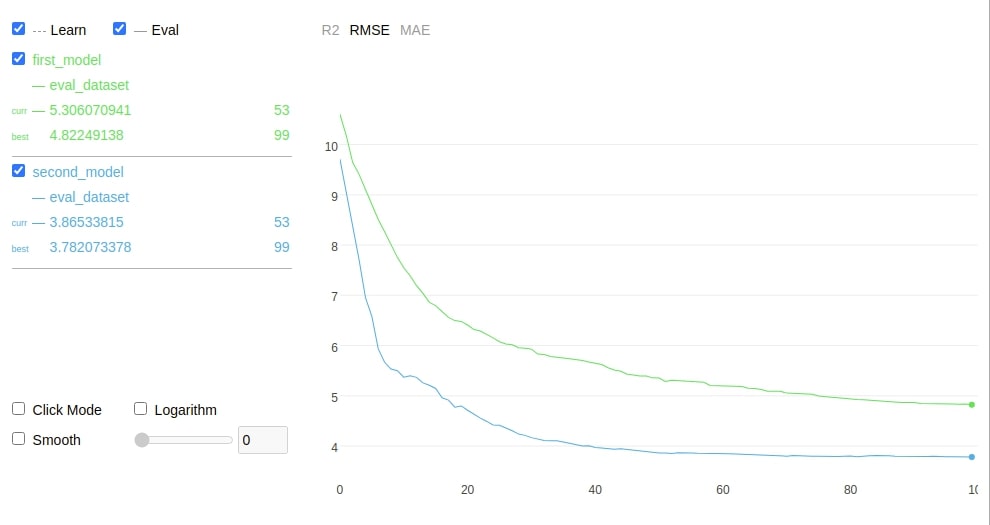

    • Visualization to Compare Performance Of Different Models using "compare()"
      • How to Compare Performance Of Different CatBoost Models?
  12. Recovering Interrupted Training using Snapshots
  13. Early Stop Training to Avoid Overfitting
  14. Monotonic Constraints
  15. Custom Evaluation Metric Function
  16. Custom Objective/Loss Function
  17. Text Data Example
  18. GPU Support

We'll start by importing the necessary libraries.

import pandas as pd
import numpy as np

import matplotlib.pyplot as plt

import warnings

warnings.filterwarnings("ignore")
pd.set_option("display.max_columns", 50)

import catboost
import sklearn

print("CatBoost Version     : ", catboost.__version__)
print("Scikit-Learn Version : ", sklearn.__version__)
CatBoost Version     :  1.0.6
Scikit-Learn Version :  1.0.2

1. Load Datasets

We'll be using the below-mentioned three different datasets which are available from sklearn as a part of this tutorial for explanation purposes.

  1. Boston Housing Dataset: It's a regression problem dataset which has information about the various attribute of houses in Boston and their price in dollar. This will be used for regression tasks.
  2. Breast Cancer Dataset: It's a classification dataset which has information about two different types of tumor. It'll be used for explaining binary classification tasks.
  3. Wine Dataset - It's a classification dataset which has information about ingredients used in three different types of wines. It'll be used for explaining multi-class classification tasks.

We have loaded all three datasets mentioned one by one below. We have printed descriptions of datasets which gives us an overview of dataset features and size. We have even loaded each dataset as a pandas data frame and displayed the first few samples of data.

Boston Housing Dataset

from sklearn.datasets import load_boston

boston = load_boston()

for line in boston.DESCR.split("\n")[5:29]:
    print(line)

boston_df = pd.DataFrame(data=boston.data, columns = boston.feature_names)
boston_df["Price"] = boston.target

boston_df.head()
**Data Set Characteristics:**

    :Number of Instances: 506

    :Number of Attributes: 13 numeric/categorical predictive. Median Value (attribute 14) is usually the target.

    :Attribute Information (in order):
        - CRIM     per capita crime rate by town
        - ZN       proportion of residential land zoned for lots over 25,000 sq.ft.
        - INDUS    proportion of non-retail business acres per town
        - CHAS     Charles River dummy variable (= 1 if tract bounds river; 0 otherwise)
        - NOX      nitric oxides concentration (parts per 10 million)
        - RM       average number of rooms per dwelling
        - AGE      proportion of owner-occupied units built prior to 1940
        - DIS      weighted distances to five Boston employment centres
        - RAD      index of accessibility to radial highways
        - TAX      full-value property-tax rate per $10,000
        - PTRATIO  pupil-teacher ratio by town
        - B        1000(Bk - 0.63)^2 where Bk is the proportion of blacks by town
        - LSTAT    % lower status of the population
        - MEDV     Median value of owner-occupied homes in $1000's

    :Missing Attribute Values: None

CRIM ZN INDUS CHAS NOX RM AGE DIS RAD TAX PTRATIO B LSTAT Price
0 0.00632 18.0 2.31 0.0 0.538 6.575 65.2 4.0900 1.0 296.0 15.3 396.90 4.98 24.0
1 0.02731 0.0 7.07 0.0 0.469 6.421 78.9 4.9671 2.0 242.0 17.8 396.90 9.14 21.6
2 0.02729 0.0 7.07 0.0 0.469 7.185 61.1 4.9671 2.0 242.0 17.8 392.83 4.03 34.7
3 0.03237 0.0 2.18 0.0 0.458 6.998 45.8 6.0622 3.0 222.0 18.7 394.63 2.94 33.4
4 0.06905 0.0 2.18 0.0 0.458 7.147 54.2 6.0622 3.0 222.0 18.7 396.90 5.33 36.2

Breast Cancer Dataset

from sklearn.datasets import load_breast_cancer

breast_cancer = load_breast_cancer()

for line in breast_cancer.DESCR.split("\n")[5:31]:
    print(line)

breast_cancer_df = pd.DataFrame(data=breast_cancer.data, columns = breast_cancer.feature_names)
breast_cancer_df["TumorType"] = breast_cancer.target

breast_cancer_df.head()
**Data Set Characteristics:**

    :Number of Instances: 569

    :Number of Attributes: 30 numeric, predictive attributes and the class

    :Attribute Information:
        - radius (mean of distances from center to points on the perimeter)
        - texture (standard deviation of gray-scale values)
        - perimeter
        - area
        - smoothness (local variation in radius lengths)
        - compactness (perimeter^2 / area - 1.0)
        - concavity (severity of concave portions of the contour)
        - concave points (number of concave portions of the contour)
        - symmetry
        - fractal dimension ("coastline approximation" - 1)

        The mean, standard error, and "worst" or largest (mean of the three
        largest values) of these features were computed for each image,
        resulting in 30 features.  For instance, field 3 is Mean Radius, field
        13 is Radius SE, field 23 is Worst Radius.

        - class:
                - WDBC-Malignant
                - WDBC-Benign
mean radius mean texture mean perimeter mean area mean smoothness mean compactness mean concavity mean concave points mean symmetry mean fractal dimension radius error texture error perimeter error area error smoothness error compactness error concavity error concave points error symmetry error fractal dimension error worst radius worst texture worst perimeter worst area worst smoothness worst compactness worst concavity worst concave points worst symmetry worst fractal dimension TumorType
0 17.99 10.38 122.80 1001.0 0.11840 0.27760 0.3001 0.14710 0.2419 0.07871 1.0950 0.9053 8.589 153.40 0.006399 0.04904 0.05373 0.01587 0.03003 0.006193 25.38 17.33 184.60 2019.0 0.1622 0.6656 0.7119 0.2654 0.4601 0.11890 0
1 20.57 17.77 132.90 1326.0 0.08474 0.07864 0.0869 0.07017 0.1812 0.05667 0.5435 0.7339 3.398 74.08 0.005225 0.01308 0.01860 0.01340 0.01389 0.003532 24.99 23.41 158.80 1956.0 0.1238 0.1866 0.2416 0.1860 0.2750 0.08902 0
2 19.69 21.25 130.00 1203.0 0.10960 0.15990 0.1974 0.12790 0.2069 0.05999 0.7456 0.7869 4.585 94.03 0.006150 0.04006 0.03832 0.02058 0.02250 0.004571 23.57 25.53 152.50 1709.0 0.1444 0.4245 0.4504 0.2430 0.3613 0.08758 0
3 11.42 20.38 77.58 386.1 0.14250 0.28390 0.2414 0.10520 0.2597 0.09744 0.4956 1.1560 3.445 27.23 0.009110 0.07458 0.05661 0.01867 0.05963 0.009208 14.91 26.50 98.87 567.7 0.2098 0.8663 0.6869 0.2575 0.6638 0.17300 0
4 20.29 14.34 135.10 1297.0 0.10030 0.13280 0.1980 0.10430 0.1809 0.05883 0.7572 0.7813 5.438 94.44 0.011490 0.02461 0.05688 0.01885 0.01756 0.005115 22.54 16.67 152.20 1575.0 0.1374 0.2050 0.4000 0.1625 0.2364 0.07678 0

Wine Dataset

from sklearn.datasets import load_wine

wine = load_wine()

for line in wine.DESCR.split("\n")[5:29]:
    print(line)

wine_df = pd.DataFrame(data=wine.data, columns = wine.feature_names)
wine_df["WineType"] = wine.target

wine_df.head()
**Data Set Characteristics:**

    :Number of Instances: 178 (50 in each of three classes)
    :Number of Attributes: 13 numeric, predictive attributes and the class
    :Attribute Information:
 		- Alcohol
 		- Malic acid
 		- Ash
		- Alcalinity of ash
 		- Magnesium
		- Total phenols
 		- Flavanoids
 		- Nonflavanoid phenols
 		- Proanthocyanins
		- Color intensity
 		- Hue
 		- OD280/OD315 of diluted wines
 		- Proline

    - class:
            - class_0
            - class_1
            - class_2

alcohol malic_acid ash alcalinity_of_ash magnesium total_phenols flavanoids nonflavanoid_phenols proanthocyanins color_intensity hue od280/od315_of_diluted_wines proline WineType
0 14.23 1.71 2.43 15.6 127.0 2.80 3.06 0.28 2.29 5.64 1.04 3.92 1065.0 0
1 13.20 1.78 2.14 11.2 100.0 2.65 2.76 0.26 1.28 4.38 1.05 3.40 1050.0 0
2 13.16 2.36 2.67 18.6 101.0 2.80 3.24 0.30 2.81 5.68 1.03 3.17 1185.0 0
3 14.37 1.95 2.50 16.8 113.0 3.85 3.49 0.24 2.18 7.80 0.86 3.45 1480.0 0
4 13.24 2.59 2.87 21.0 118.0 2.80 2.69 0.39 1.82 4.32 1.04 2.93 735.0 0

2. CatBoost Models at High-Level (High-Level API)

CatBoost provides three different estimators to perform classification and regression tasks.

  1. CatBoost - It's a universal estimator which can handle both classification and regression datasets with settings.
  2. CatBoostRegressor - It is an estimator with scikit-learn like API designed to work with regression datasets.
  3. CatBoostClassifier - It is an estimator with scikit-learn like API designed to work with classification datasets.

3. CatBoost: Regression Example

The simplest way to train a model in Catboost is by initializing the CatBoost estimator. The CatBoost constructor accepts only one parameter named params which is a dictionary of parameters to be used to create an estimator. It has one main parameter named loss_function based on the value of this parameter it determines whether the task is regression or classification. We can create a CatBoost estimator without passing any parameter and it'll create an estimator with loss function as root mean squared error which is used for regression tasks. All the parameters have some defined default values which we'll list down at the end of this section. By default, the CatBoost estimator trains for 1000 iterations creating 1000 trees. It's an alias to the n_estimators parameter which limits the number of trees.

3.1 Train Simple CatBoost Model, Make Predictions and Evaluate Performance

Below we have created our first CatBoost estimator using the RMSE loss function. We have passed an iteration value of 100 to train it for 100 iterations. The verbose value of 10 will print results at every 10 iterations. The training process will create an ensemble of 100 trees.

In the next cell, we have divided the Boston housing dataset into the train (90%) and test (10%) sets using scikit-learn's train_test_split() function.

from catboost import CatBoost

booster = CatBoost(params={'iterations':100, 'verbose':10, 'loss_function':'RMSE'})

booster
<catboost.core.CatBoost at 0x7fa71fbd9978>
from sklearn.model_selection import train_test_split

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

X_train.shape, X_test.shape, Y_train.shape, Y_test.shape
((455, 13), (51, 13), (455,), (51,))

We are now training our gradient boosting estimator created from previous steps by calling the fit() method on it passing it train data and labels. The fit() method accepts many other parameters which we'll explain as we go ahead with the tutorial. We have then called the set_feature_names() method which can be used to set feature names for each column of data.

booster.fit(X_train, Y_train)
booster.set_feature_names(boston.feature_names)
Learning rate set to 0.195221
0:	learn: 7.9013401	total: 49.9ms	remaining: 4.94s
10:	learn: 3.5505266	total: 71.7ms	remaining: 580ms
20:	learn: 2.5639279	total: 87.4ms	remaining: 329ms
30:	learn: 2.1352590	total: 96.8ms	remaining: 215ms
40:	learn: 1.8986418	total: 104ms	remaining: 150ms
50:	learn: 1.7054125	total: 110ms	remaining: 106ms
60:	learn: 1.5124150	total: 116ms	remaining: 73.9ms
70:	learn: 1.3810154	total: 122ms	remaining: 49.7ms
80:	learn: 1.2817508	total: 127ms	remaining: 29.9ms
90:	learn: 1.1909646	total: 133ms	remaining: 13.2ms
99:	learn: 1.0946543	total: 138ms	remaining: 0us

The CatBoost estimator provides the method predict() which accepts feature values and returns model predictions. We have below calculated predictions for train and test datasets.

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

test_preds[:5], train_preds[:5]
(array([27.31252602, 25.46937914, 48.40820072, 17.59846592, 31.75154109]),
 array([29.06693798, 20.01352158, 10.58013016, 20.45851082, 14.61395818]))

We can evaluate model performance using the eval_metric() method available from the utils module of catboost. The method accepts actual labels, predictions, and a list of metrics to evaluate. We'll later list down a list of available metrics with catboost. We have evaluated the R2 metric on both train and test sets below.

from catboost.utils import eval_metric

print("Test  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Test  R2 : 0.83
Train R2 : 0.99

3.2 Important Attributes & Methods of "CatBoost" Object

We'll now list down a list of important attributes and methods of the CatBoost estimator. Please make a note that this is not a list of all possible attributes and methods. There are many more methods which we'll cover later as well.

Attributes

  • best_score_ - It returns the best score of the model.
  • classes_ - It returns list of classes for classification problem.
  • feature_names_ - It returns list of feature names.
  • feature_importances_ - It returns the importance of each feature per algorithm.
  • learning_rate_ - It returns the learning rate of the algorithm.
  • random_seed_ - It returns a random seed from which initial model weights were assigned.
  • tree_count_ - It returns the number of trees in the ensemble.
  • n_features_in_ - It returns the number of features used to train the model.
  • evals_result - It returns dictionary of evaluation. If we have provided an evaluation set then evaluation results for it will be included.
print("Best Score                : ",booster.best_score_)
print("\nList of Target Classses : ",booster.classes_)
print("\nData Feature Names      : ",booster.feature_names_)
print("\nFeature Importance      : ", booster.feature_importances_)
print("\nLearning Rate           : ",booster.learning_rate_)
print("\nRandom Seed             : ",booster.random_seed_)
print("\nNumber of Trees         : ",booster.tree_count_)
print("\nNumber of Features      : ",booster.n_features_in_)
Best Score                :  {'learn': {'RMSE': 1.0946543114564808}}

List of Target Classses :  []

Data Feature Names      :  ['CRIM', 'ZN', 'INDUS', 'CHAS', 'NOX', 'RM', 'AGE', 'DIS', 'RAD', 'TAX', 'PTRATIO', 'B', 'LSTAT']

Feature Importance      :  [ 5.92222613  0.63347651  1.30753294  0.51512493  4.23171093 36.80942036
  4.56455622  6.41080691  1.84345698  2.59364321  6.58149125  2.74532378
 25.84122985]

Learning Rate           :  0.19522100687026978

Random Seed             :  0

Number of Trees         :  100

Number of Features      :  13

Methods

  • get_best_score() - It returns best score of the estimator.
  • get_params() - It returns parameters which were given as dictionary when creating CatBoost estimator and their values as dictionary.
  • get_all_params() - It returns list of all parameters of CatBoost estimator and their values as dictionary.
  • get_cat_feature_indices() - It returns list of indices which has categorical features.
  • get_feature_importance() - It returns feature importance of individual feature according to trained model.
  • shrink(ntree_end, ntree_start=0) - It accepts two arguments which are end tree and starts tree to shrink ensemble to include only trees that come in that index range discarding all other trees.
  • set_params() - It can be used to set parameters of the estimator. Please make a note that this method will only work before the training model.
  • calc_leaf_indexes(data, ntree_start=0,ntree_end=0) - It takes as input data and returns index of leaf in each tree which was used to make prediction for sample. The output of this function will be n_samples x n_trees. It'll return all trees' leaf index for a sample.
  • get_leaf_values() - It returns actual leaf values of the trees in ensemble.
  • get_leaf_weights() - It returns leaf weights for each leaf of the trees in the ensemble.
leaf_indices = booster.calc_leaf_indexes(X_train)

print("Leaf Indices Size : ",leaf_indices.shape)

leaf_indices[:2]
Leaf Indices Size :  (455, 100)
array([[33, 16,  4,  8, 35,  9, 10,  9, 42, 35, 21,  6,  7, 20, 55, 26,
        22, 33, 16, 10, 18,  1, 54, 27, 17,  4, 20,  2, 45,  9, 12, 19,
        11, 32, 21, 35, 36, 33, 25,  8,  1, 45,  1, 21, 23, 27, 40, 13,
        17,  5, 26, 21,  4, 16,  8, 13, 37, 17, 47,  9,  5,  4, 12, 50,
        36, 61, 33,  5, 51,  4,  9, 24, 17, 37, 33,  5, 33,  8, 33,  0,
        45,  2, 48, 14, 22, 10, 61, 14, 58, 15, 10, 13, 12, 32, 38, 11,
         0,  5, 36, 33],
       [36, 34, 20, 28, 51, 25, 34, 41, 42, 27, 53,  6, 35,  4, 55, 26,
        54, 23,  4, 10, 31, 43, 46, 27,  5,  3, 61,  2, 39,  9,  8, 25,
        11,  9, 21, 43,  6, 45, 25,  9, 49, 45, 35, 23, 23, 27, 63, 13,
        17, 53, 58, 21, 12, 51,  8, 29, 37, 17, 51, 43, 53, 24, 15, 50,
        36, 61, 33, 37, 35, 45,  9, 24, 49, 61, 33, 61, 35,  8, 33, 56,
        61, 37, 53,  9, 62, 58, 61, 14, 57, 15, 10, 13, 36, 32, 46, 63,
         2, 37, 36, 33]], dtype=uint32)
print("Parameters Passed When Creating Model : ",booster.get_params())

print("\nAll Model Parameters                : ",booster.get_all_params())
Parameters Passed When Creating Model :  {'iterations': 100, 'verbose': 10, 'loss_function': 'RMSE'}

All Model Parameters                :  {'nan_mode': 'Min', 'eval_metric': 'RMSE', 'iterations': 100, 'sampling_frequency': 'PerTree', 'leaf_estimation_method': 'Newton', 'grow_policy': 'SymmetricTree', 'penalties_coefficient': 1, 'boosting_type': 'Plain', 'model_shrink_mode': 'Constant', 'feature_border_type': 'GreedyLogSum', 'bayesian_matrix_reg': 0.10000000149011612, 'l2_leaf_reg': 3, 'random_strength': 1, 'rsm': 1, 'boost_from_average': True, 'model_size_reg': 0.5, 'subsample': 0.800000011920929, 'use_best_model': False, 'random_seed': 0, 'depth': 6, 'posterior_sampling': False, 'border_count': 254, 'classes_count': 0, 'auto_class_weights': 'None', 'sparse_features_conflict_fraction': 0, 'leaf_estimation_backtracking': 'AnyImprovement', 'best_model_min_trees': 1, 'model_shrink_rate': 0, 'min_data_in_leaf': 1, 'loss_function': 'RMSE', 'learning_rate': 0.19522100687026975, 'score_function': 'Cosine', 'task_type': 'CPU', 'leaf_estimation_iterations': 1, 'bootstrap_type': 'MVS', 'max_leaves': 64}
print("\nBest Score                  : ",booster.get_best_score())
print("\nCategorical Feature Indices : ",booster.get_cat_feature_indices())
print("\nFeature Importances        : ",booster.get_feature_importance())
Best Score                  :  {'learn': {'RMSE': 1.0946543114564808}}

Categorical Feature Indices :  []

Feature Importances        :  [ 5.92222613  0.63347651  1.30753294  0.51512493  4.23171093 36.80942036
  4.56455622  6.41080691  1.84345698  2.59364321  6.58149125  2.74532378
 25.84122985]
print("\nLeaf Values Shape   : ", booster.get_leaf_values().shape)
print("\nLeaf Values         : ", booster.get_leaf_values()[:10])
print("\nLeaft Weights Shape : ",booster.get_leaf_weights().shape)
print("\nLeaft Weights       : ",booster.get_leaf_weights()[:10])
Leaf Values Shape   :  (6400,)

Leaf Values         :  [ 0.         -0.13355947  0.          0.          0.          0.
  0.          0.          0.         -0.48615764]

Leaft Weights Shape :  (6400,)

Leaft Weights       :  [0. 4. 0. 0. 0. 0. 0. 0. 0. 3.]

Shrink Estimator by Reducing Number of Trees in Ensemble

Below we have explained how we can use the shrink() method. We have reduced our original ensemble from 100 to 50 trees. We have then evaluated the R2 metric on the train and test sets. We can notice a visible change in the R2 score by decreasing the number of trees in the ensemble.

booster.shrink(ntree_end=50)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("Test  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Test  R2 : 0.81
Train R2 : 0.96

3.3 How to Perform Hyperparameters Tunning with CatBoost?

The CatBoost estimator lets us perform grid search as well using the grid_search() method of the estimator. In order to do a grid search, we need to create an estimator without setting parameters that we want to try. We then call the grid_search() method on the estimator instance by giving it parameters dictionary and data to try different parameter combinations.

If you are interested in learning about grid search and randomized search from scikit-learn then please feel free to check our tutorial on the same.

Important Parameters of "grid_search()"
  • param_grid - It accepts a dictionary of parameter names and a list of values to try for that parameters.
  • X - It accepts numpy array, pandas dataframe, 'catboost.Pool' data structure which has feature values.
  • y - It accepts target labels of data. If we are using the catboost.Pool data structure which has labels info then we don't need to pass this parameter value.
  • cv - It accepts integer or sklearn data splitter classes (KFold, StratifiedKFold, ShuffleSplit, StratifiedShuffleSplit). If we give an integer as input then that many folds of data will be created for training. The default value of the parameter is 3.
  • calc_cv_statistics - It accepts boolean value specifying whether to calculate cross-validation statistics. The default is True.
  • refit - It accepts boolean values specifying whether to train a model using the best parameter setting found using cross-validation. The default is True.
  • stratified - It performs stratified partition of the dataset so that class proportion is maintained in sets. The default is True.

The method returns a dictionary with two keys.

  • Best parameter settings.
  • Cross-validation results.

Below we are explaining how we can perform a grid search with an example. We are trying different values of parameters iterations, learning_rate and booststrap_type. We are using training data created from the Boston dataset earlier. We have then evaluated the performance of the estimator with the best setting by calculating the R2 score on the train and test dataset.

booster = CatBoost()

params = {
            'iterations':[10,50],
            'learning_rate':[0.01, 0.1],
            'bootstrap_type':['Bayesian', 'Bernoulli', 'No']
}

search_results = booster.grid_search(params, X_train, Y_train, cv=5)

print("\nBest Params : ", search_results['params'])

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
bestTest = 21.55239476
bestIteration = 9

0:	loss: 21.5523948	best: 21.5523948 (0)	total: 124ms	remaining: 1.36s

bestTest = 21.55702996
bestIteration = 9

1:	loss: 21.5570300	best: 21.5523948 (0)	total: 148ms	remaining: 740ms

bestTest = 21.55128989
bestIteration = 9

2:	loss: 21.5512899	best: 21.5512899 (2)	total: 160ms	remaining: 479ms

bestTest = 10.92908795
bestIteration = 9

3:	loss: 10.9290879	best: 10.9290879 (3)	total: 175ms	remaining: 349ms

bestTest = 10.95387453
bestIteration = 9

4:	loss: 10.9538745	best: 10.9290879 (3)	total: 181ms	remaining: 253ms

bestTest = 10.7457616
bestIteration = 9

5:	loss: 10.7457616	best: 10.7457616 (5)	total: 187ms	remaining: 187ms

bestTest = 15.92112385
bestIteration = 49

6:	loss: 15.9211238	best: 10.7457616 (5)	total: 216ms	remaining: 154ms

bestTest = 15.8017972
bestIteration = 49

7:	loss: 15.8017972	best: 10.7457616 (5)	total: 244ms	remaining: 122ms

bestTest = 15.81644278
bestIteration = 49

8:	loss: 15.8164428	best: 10.7457616 (5)	total: 272ms	remaining: 90.5ms

bestTest = 3.788368224
bestIteration = 49

9:	loss: 3.7883682	best: 3.7883682 (9)	total: 300ms	remaining: 60ms

bestTest = 3.654791242
bestIteration = 49

10:	loss: 3.6547912	best: 3.6547912 (10)	total: 335ms	remaining: 30.5ms

bestTest = 3.452184786
bestIteration = 49

11:	loss: 3.4521848	best: 3.4521848 (11)	total: 386ms	remaining: 0us
Estimating final quality...

Best Params :  {'iterations': 50, 'learning_rate': 0.1, 'bootstrap_type': 'No'}

Test  R2 : 0.81
Train R2 : 0.93
cv_results = pd.DataFrame(search_results["cv_results"])

cv_results.head()
iterations test-RMSE-mean test-RMSE-std train-RMSE-mean train-RMSE-std
0 0 22.014214 0.786907 21.983740 0.187981
1 1 20.292298 0.793154 20.237792 0.174227
2 2 18.777471 0.791517 18.663837 0.157903
3 3 17.340791 0.751594 17.184659 0.135167
4 4 16.026837 0.745211 15.853864 0.120795

The CatBoost also lets us perform a randomized search which is faster compared to grid search which only tries a few parameter settings than trying all possible combinations. We can perform a randomized search using randomized_search() of the CatBoost estimator. The randomized_search() method has the same API as that of the grid_search() method with one extra parameter named n_iter which accepts integer values specifying how many random combinations of parameters to try. The default value of this parameter is 10.

Below we have explained how we can perform a randomized search. We are trying different values of parameters iterations, learning_rate and booststrap_type. We are using training data created from the Boston dataset earlier. We have then evaluated the performance of an estimator with the best setting by calculating the R2 score on the train and test dataset.

booster = CatBoost()

params = {
            'iterations':[5,10,50,100],
            'learning_rate':[0.01, 0.03, 0.1,1.0],
            'bootstrap_type':['Bayesian', 'Bernoulli', 'MVS', 'No']
}

search_results = booster.randomized_search(params, X_train, Y_train, cv=5, n_iter=8)

print("\nBest Params : ", search_results['params'])

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
bestTest = 15.6936908
bestIteration = 4

0:	loss: 15.6936908	best: 15.6936908 (0)	total: 106ms	remaining: 745ms

bestTest = 8.345542698
bestIteration = 49

1:	loss: 8.3455427	best: 8.3455427 (1)	total: 211ms	remaining: 633ms

bestTest = 8.147224095
bestIteration = 49

2:	loss: 8.1472241	best: 8.1472241 (2)	total: 264ms	remaining: 440ms

bestTest = 3.452184786
bestIteration = 49

3:	loss: 3.4521848	best: 3.4521848 (3)	total: 294ms	remaining: 294ms

bestTest = 4.563786442
bestIteration = 13

4:	loss: 4.5637864	best: 3.4521848 (3)	total: 329ms	remaining: 197ms

bestTest = 5.044662741
bestIteration = 29

5:	loss: 5.0446627	best: 3.4521848 (3)	total: 370ms	remaining: 123ms

bestTest = 3.425305309
bestIteration = 99

6:	loss: 3.4253053	best: 3.4253053 (6)	total: 428ms	remaining: 61.2ms

bestTest = 4.563786442
bestIteration = 13

7:	loss: 4.5637864	best: 3.4253053 (6)	total: 485ms	remaining: 0us
Estimating final quality...

Best Params :  {'iterations': 100, 'learning_rate': 0.1, 'bootstrap_type': 'Bayesian'}

Test  R2 : 0.80
Train R2 : 0.96
cv_results = pd.DataFrame(search_results["cv_results"])

cv_results.head()
iterations test-RMSE-mean test-RMSE-std train-RMSE-mean train-RMSE-std
0 0 22.125040 0.844848 22.066620 0.202171
1 1 20.439970 0.852782 20.330457 0.198279
2 2 18.920182 0.867940 18.736814 0.218151
3 3 17.532082 0.865926 17.304811 0.211505
4 4 16.242792 0.824299 15.961548 0.199420

3.4 Important Parameters of CatBoost Model

NOTE: Please feel free to skip this section if you are in hurry. It is a theoretical section listing parameters of "CatBoost()" constructor. You can refer to them later as you need to tweak model.

Below we have listed down important parameters of gradient boosting algorithm which we can pass to CatBoost constructor in a dictionary when creating an estimator. These parameters will be available in CatBoostRegressor and CatBoostClassifier constructor as well.

  • loss_function - It accepts string specifying metric used during training. The gradient boosting algorithm will try to minimize/maximize loss function output depending on the situation. Below we have given some commonly used loss functions.
  • custom_metric - It’s the same as the above parameter and the output of the function specified here will be printed during training. We can specify a single metric or even a list of metrics.
  • eval_metric - It accepts string specifying metric to evaluate on evaluation set given during training. It has the same options as that of loss_function.
  • iterations - It accepts integers specifying the number of trees to train. The default is 1000.
  • learning_rate - It specifies the learning rate during the training process. The default is 0.03.
  • l2_leaf_reg - It accepts float specifying coefficient of L2 regularization of a loss function. The default value is 3.
  • bootstrap_type - It accepts string specifying bootstrap type. Below is a list of possible values.
    • Bayesian
    • Bernoulli
    • MVS
    • Poisson - Only works when training on GPU
    • No
  • class_names - It accepts a list of string specifying class names for classification tasks.
  • classes_count - It accepts integer specifying the number of classes in target for multi-class classification problem.
  • depth/max_depth - It accepts integer specifying maximum allowed tree depth in an ensemble. The default is 6.
  • min_data_in_leaf - It accepts an integer specifying a minimum number of training samples per leaf of a tree. The default is 1.
  • max_leaves - It accepts an integer specifying the minimum number of leaves in a tree. The default is 31.
  • leaf_estimation_method - It accepts the string specifying method used to calculate values in leaves. Below is a list of possible options.
    • Newton
    • Gradient
    • Exact
  • monotone_constraints - It accepts list of integers of length n_features. Each entry in the list has a value of either 1,0 or -1 specifying increasing, none, or decreasing monotone relation of a feature with the target. We can even give a list of strings or a dictionary of mapping from feature names to relation types.
  • early_stopping_rounds - It accepts an integer that instructs the algorithm to stop training if the last evaluation set in the list has not improved for that many rounds.
  • thread_count - It accepts integer specifying the number of threads to use during training. The default is -1 which means to use all cores on the system.
  • used_ram_limit - It accepts string specifying the size of RAM to use when training. It accepts values in KB, MB, and GB.
  • gpu_ram_part - It accepts float between 0-1 specifying how much GPU ram to use. The default is 0.95 which means 95% of RAM.
  • task_type - It accepts one of the below options specifying whether to run the task on CPU or GPU.
    • CPU
    • GPU
  • devices - It accepts string specifying IDs of GPUs to use for training. Below are possible options
    • Single GPU - [id1] - It'll use GPU with id1 for training.
    • List of GPUs - [id1]:[id3]:[id5] - It'll use GPU with id1, id3 and id5 for training.
    • Range of GPUs - [id1]:[id3] - It'll use GPU with id1, id2 and id3 for taining.
  • train_dir - It accepts string specifying where to store info generated during training. The default is catboost_info.

Please make a note that the above-mentioned list is not all possible parameters available in CatBoost. The above list includes important parameters which are generally tuned for good performance. Below we have given a list of all possible parameters available.

3.5 Important Parameters of "Catboost.fit()" Methods

NOTE: Please feel free to skip this section if you are in hurry. It is a theoretical section listing parameters of "CatBoost()" constructor. You can refer to them later as you need to tweak model.

  • cat_features - It accepts a list of integer specifying indices of data that has categorical features.
  • text_features - - It accepts a list of integer specifying indices of data that has text features.
  • embedding_features - - It accepts a list of integer specifying indices of data that has embedding features.
  • eval_set - It accepts a list of below options as input to be used as an evaluation set.
    • catboost.Pool
    • pandas dataframe
    • numpy tuple of features and target labels.
  • early_stopping_rounds - It accepts an integer that instructs the algorithm to stop training if the last evaluation set in the list has not improved for that many rounds.
  • plot - It accepts boolean value specifying whether to generate a plot of training results.
  • save_snapshot - It accepts boolean value specifying whether to store a snapshot of training at a specified interval so that interrupted training can be resumed later from that point rather than from the beginning.
  • snapshot_file - It accepts string specifying file name where to stop snapshots during training.
  • snapshot_interval - It accepts integer specifying interval in seconds at which snapshots are saved.

4. CatBoost: Regression ("Pool" Data Structure to Represent Datasets)

As a part of this section, we are explaining how we can use the catboost internal data structure named Pool for maintaining data. We have even explained how we can create a CatBoost estimator using the train() method of the catboost library. Please make a note that catboost.train() has almost all parameters same as that of CatBoost.fit() method.

The Pool is an internal data structure of catboost that wraps our data and target values. It can make training faster.

4.1 Important Parameters Of "Pool()" Constructor

Below we have given important parameters of the Pool constructor.

  • data - It accepts numpy array, pandas dataframe, or list which has features values.
  • label - It accepts numpy array, pandas dataframe, or list which has target labels.
  • cat_features - It accepts a list of integer specifying indices of data that has categorical features.
  • text_features -It accepts a list of integer specifying indices of data that has text features.

Below we have explained how we can use the Pool data structure with the train() method to generate the CatBoost estimator.

from catboost import Pool

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

train_data = Pool(X_train, Y_train)
test_data = Pool(X_test, Y_test)

booster = catboost.train(pool=train_data,params={'iterations':100,
                                                 'verbose':10,
                                                 'loss_function':'RMSE',
                                                 })

print()
print(booster)

booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(test_data)
train_preds = booster.predict(train_data)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Learning rate set to 0.195221
0:	learn: 7.9013401	total: 2.71ms	remaining: 269ms
10:	learn: 3.5505266	total: 9.11ms	remaining: 73.7ms
20:	learn: 2.5639279	total: 14.9ms	remaining: 56.1ms
30:	learn: 2.1352590	total: 20.6ms	remaining: 45.9ms
40:	learn: 1.8986418	total: 26.3ms	remaining: 37.9ms
50:	learn: 1.7054125	total: 32ms	remaining: 30.7ms
60:	learn: 1.5124150	total: 37.6ms	remaining: 24.1ms
70:	learn: 1.3810154	total: 43.3ms	remaining: 17.7ms
80:	learn: 1.2817508	total: 49.1ms	remaining: 11.5ms
90:	learn: 1.1909646	total: 54.8ms	remaining: 5.41ms
99:	learn: 1.0946543	total: 59.8ms	remaining: 0us

<catboost.core.CatBoost object at 0x7f21de94e828>

Test  R2 : 0.83
Train R2 : 0.99

Below we have given another example where we have explained how we can give an evaluation set that will be evaluated during training.

from catboost import Pool
from catboost.utils import eval_metric

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

train_data = Pool(X_train, Y_train)
test_data = Pool(X_test, Y_test)

booster = CatBoost({'verbose':10, 'iterations':100})
booster.fit(train_data, eval_set=(test_data))
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(test_data)
train_preds = booster.predict(train_data)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Learning rate set to 0.166668
0:	learn: 8.0520453	test: 10.1798347	best: 10.1798347 (0)	total: 2.65ms	remaining: 262ms
10:	learn: 3.8810707	test: 6.4769275	best: 6.4769275 (10)	total: 26.7ms	remaining: 216ms
20:	learn: 2.7929439	test: 5.4534123	best: 5.4534123 (20)	total: 45.9ms	remaining: 173ms
30:	learn: 2.3461951	test: 5.1077987	best: 5.1077987 (30)	total: 63.9ms	remaining: 142ms
40:	learn: 2.0812703	test: 4.8640181	best: 4.8640181 (40)	total: 79.8ms	remaining: 115ms
50:	learn: 1.8649713	test: 4.7165995	best: 4.7052137 (48)	total: 92.1ms	remaining: 88.5ms
60:	learn: 1.6934276	test: 4.6191067	best: 4.6191067 (60)	total: 103ms	remaining: 65.6ms
70:	learn: 1.5620403	test: 4.5825150	best: 4.5825150 (70)	total: 111ms	remaining: 45.2ms
80:	learn: 1.4340285	test: 4.5732299	best: 4.5389627 (74)	total: 117ms	remaining: 27.4ms
90:	learn: 1.3495901	test: 4.5714853	best: 4.5389627 (74)	total: 123ms	remaining: 12.2ms
99:	learn: 1.2619128	test: 4.5646310	best: 4.5389627 (74)	total: 133ms	remaining: 0us

bestTest = 4.538962725
bestIteration = 74

Shrink model to first 75 iterations.

Test  R2 : 0.82
Train R2 : 0.97

Catboost has a method named to_regressor() which takes CatBoost instance and converts it to CatBoostRegressor instance.

catboost.to_regressor(booster)
<catboost.core.CatBoostRegressor at 0x7f21dfac4358>

5. CatBoost: Binary Classification Example

As a part of this section, we have explained how we can use CatBoost for binary classification problems. We have divided breast cancer data into train and test sets. We have created the CatBoost instance with the LogLoss loss function and then trained the model on train data. We have then evaluated it on test data as well as printing its accuracy.

Please make a note that the predict() method has a parameter named prediction_type which accepts the below-mentioned value to generate different predictions.

  • RawFormulaVal - It generates raw output from a gradient boosting algorithm.
  • Class - It returns class number for classification problems.
  • Probability - It returns probability for classification problem.
X_train, X_test, Y_train, Y_test = train_test_split(breast_cancer.data, breast_cancer.target, train_size=0.9,
                                                    stratify=breast_cancer.target,
                                                    random_state=123)

booster = CatBoost(params={'iterations':100, 'verbose':10, 'loss_function':'Logloss'})

booster.fit(X_train, Y_train, eval_set=(X_test, Y_test))
booster.set_feature_names(breast_cancer.feature_names)

test_preds = booster.predict(X_test, prediction_type="Class")
train_preds = booster.predict(X_train, prediction_type="Class")

from catboost.utils import eval_metric

print("\nTest  Accuracy : %.2f"%eval_metric(Y_test, test_preds, "Accuracy")[0])
print("Train Accuracy : %.2f"%eval_metric(Y_train, train_preds, "Accuracy")[0])
Learning rate set to 0.073131
0:	learn: 0.5730087	test: 0.5715369	best: 0.5715369 (0)	total: 92.6ms	remaining: 9.17s
10:	learn: 0.1564599	test: 0.1748713	best: 0.1748713 (10)	total: 120ms	remaining: 973ms
20:	learn: 0.0811663	test: 0.1047480	best: 0.1047480 (20)	total: 144ms	remaining: 540ms
30:	learn: 0.0522608	test: 0.0798318	best: 0.0798318 (30)	total: 167ms	remaining: 372ms
40:	learn: 0.0391529	test: 0.0681539	best: 0.0681539 (40)	total: 191ms	remaining: 275ms
50:	learn: 0.0296856	test: 0.0594379	best: 0.0590864 (49)	total: 225ms	remaining: 216ms
60:	learn: 0.0242369	test: 0.0543715	best: 0.0543715 (60)	total: 261ms	remaining: 167ms
70:	learn: 0.0188321	test: 0.0501147	best: 0.0501147 (70)	total: 285ms	remaining: 117ms
80:	learn: 0.0160430	test: 0.0495876	best: 0.0484613 (77)	total: 309ms	remaining: 72.4ms
90:	learn: 0.0133933	test: 0.0439943	best: 0.0439943 (90)	total: 332ms	remaining: 32.9ms
99:	learn: 0.0115672	test: 0.0413455	best: 0.0413455 (99)	total: 354ms	remaining: 0us

bestTest = 0.04134545311
bestIteration = 99


Test  Accuracy : 0.98
Train Accuracy : 1.00

Below we have explained how we can generate probabilities with the predict() function.

booster.predict(X_test, prediction_type="Probability")[:5]
array([[9.98702599e-01, 1.29740117e-03],
       [7.61900642e-03, 9.92380994e-01],
       [9.99418319e-01, 5.81681361e-04],
       [4.00919216e-03, 9.95990808e-01],
       [1.43614433e-03, 9.98563856e-01]])

Catboost has method named to_classifier() which takes CatBoost instance and converts it to CatBoostClassifier instance.

catboost.to_classifier(booster)
<catboost.core.CatBoostClassifier at 0x7f21de936d30>

6. CatBoost: Multi-Class Classification Example

NOTE: Please feel free to skip this section if you are in hurry and have already understood how to use catboost for classification tasks using our previous "binary classification" example.

As a part of this section, we have explained how we can use CatBoost for multi-class classification problems. We have used the wine dataset for this section as it has three classes to predict.

X_train, X_test, Y_train, Y_test = train_test_split(wine.data, wine.target, train_size=0.9,
                                                    stratify=wine.target,
                                                    random_state=123)

booster = CatBoost(params={'iterations':100, 'verbose':10, 'loss_function':'MultiClass', 'classes_count':3})

booster.fit(X_train, Y_train, eval_set=(X_test, Y_test))
booster.set_feature_names(wine.feature_names)

test_preds = booster.predict(X_test, prediction_type="Class").flatten()
train_preds = booster.predict(X_train, prediction_type="Class").flatten()

from catboost.utils import eval_metric

print("\nTest  Accuracy : %.2f"%eval_metric(Y_test, test_preds, "Accuracy")[0])
print("Train Accuracy : %.2f"%eval_metric(Y_train, train_preds, "Accuracy")[0])
Learning rate set to 0.250848
0:	learn: 0.8810930	test: 0.9177696	best: 0.9177696 (0)	total: 4.67ms	remaining: 463ms
10:	learn: 0.2073324	test: 0.3310180	best: 0.3310180 (10)	total: 31.5ms	remaining: 255ms
20:	learn: 0.0968205	test: 0.2342860	best: 0.2342860 (20)	total: 56.1ms	remaining: 211ms
30:	learn: 0.0585815	test: 0.1975512	best: 0.1969462 (29)	total: 79ms	remaining: 176ms
40:	learn: 0.0403924	test: 0.1881050	best: 0.1881050 (40)	total: 97.5ms	remaining: 140ms
50:	learn: 0.0295660	test: 0.1741516	best: 0.1741516 (50)	total: 110ms	remaining: 106ms
60:	learn: 0.0231273	test: 0.1707485	best: 0.1683297 (58)	total: 121ms	remaining: 77.3ms
70:	learn: 0.0188628	test: 0.1692754	best: 0.1683297 (58)	total: 130ms	remaining: 53.1ms
80:	learn: 0.0156153	test: 0.1676627	best: 0.1658585 (78)	total: 138ms	remaining: 32.4ms
90:	learn: 0.0135755	test: 0.1636182	best: 0.1635633 (87)	total: 145ms	remaining: 14.4ms
99:	learn: 0.0121369	test: 0.1616905	best: 0.1616905 (99)	total: 152ms	remaining: 0us

bestTest = 0.1616905315
bestIteration = 99


Test  Accuracy : 0.94
Train Accuracy : 1.00
booster.predict(X_test, prediction_type="Probability")[:5]
array([[0.01434538, 0.01599883, 0.96965578],
       [0.00373846, 0.99234009, 0.00392145],
       [0.06538219, 0.91376836, 0.02084945],
       [0.87954488, 0.0982254 , 0.02222972],
       [0.00157402, 0.99693869, 0.00148729]])

7. CatBoostRegressor (Scikit-Learn Like API)

The catboost provides an estimator named CatBoostRegressor which can be used directly for regression problems. It accepts the same parameters that were given to CatBoost as a dictionary directly. Below we have explained how we can use it with a simple example using the Boston dataset.

from catboost import CatBoostRegressor

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoostRegressor(iterations=100, verbose=10)

booster.fit(X_train, Y_train, eval_set=(X_test, Y_test))
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

from catboost.utils import eval_metric

print("\nTest  R2 : %.2f"%booster.score(X_test, Y_test))
print("Train R2 : %.2f"%booster.score(X_train, Y_train))
Learning rate set to 0.166668
0:	learn: 8.0520453	test: 10.1798347	best: 10.1798347 (0)	total: 2.77ms	remaining: 274ms
10:	learn: 3.8810707	test: 6.4769275	best: 6.4769275 (10)	total: 27ms	remaining: 219ms
20:	learn: 2.7929439	test: 5.4534123	best: 5.4534123 (20)	total: 47.3ms	remaining: 178ms
30:	learn: 2.3461951	test: 5.1077987	best: 5.1077987 (30)	total: 65.6ms	remaining: 146ms
40:	learn: 2.0812703	test: 4.8640181	best: 4.8640181 (40)	total: 83.1ms	remaining: 120ms
50:	learn: 1.8649713	test: 4.7165995	best: 4.7052137 (48)	total: 99.9ms	remaining: 95.9ms
60:	learn: 1.6934276	test: 4.6191067	best: 4.6191067 (60)	total: 116ms	remaining: 74.5ms
70:	learn: 1.5620403	test: 4.5825150	best: 4.5825150 (70)	total: 130ms	remaining: 52.9ms
80:	learn: 1.4340285	test: 4.5732299	best: 4.5389627 (74)	total: 140ms	remaining: 32.7ms
90:	learn: 1.3495901	test: 4.5714853	best: 4.5389627 (74)	total: 148ms	remaining: 14.6ms
99:	learn: 1.2619128	test: 4.5646310	best: 4.5389627 (74)	total: 155ms	remaining: 0us

bestTest = 4.538962725
bestIteration = 74

Shrink model to first 75 iterations.

Test  R2 : 0.82
Train R2 : 0.97

Important Attributes & Methods of "CatBoostRegressor"

It has the same attributes and methods which are available with the CatBoost estimator.

NOTE: Please feel free to skip this section if you are in hurry and have already understood how to perform a grid search with Catboost from earlier examples.

The CatBoostRegressor also has a grid_search() method which can be used to perform grid search with it. We have explained it below with a simple example.

booster = CatBoostRegressor()

params = {
            'iterations':[10,50],
            'learning_rate':[0.01, 0.1],
            'bootstrap_type':['Bayesian', 'No']
}

search_results = booster.grid_search(params, X_train, Y_train, cv=5, )

print("\nBest Params : ", search_results['params'])
bestTest = 21.55239476
bestIteration = 9

0:	loss: 21.5523948	best: 21.5523948 (0)	total: 173ms	remaining: 1.21s

bestTest = 21.55128989
bestIteration = 9

1:	loss: 21.5512899	best: 21.5512899 (1)	total: 211ms	remaining: 632ms

bestTest = 10.92908795
bestIteration = 9

2:	loss: 10.9290879	best: 10.9290879 (2)	total: 236ms	remaining: 394ms

bestTest = 10.7457616
bestIteration = 9

3:	loss: 10.7457616	best: 10.7457616 (3)	total: 262ms	remaining: 262ms

bestTest = 15.92112385
bestIteration = 49

4:	loss: 15.9211238	best: 10.7457616 (3)	total: 336ms	remaining: 201ms

bestTest = 15.81644278
bestIteration = 49

5:	loss: 15.8164428	best: 10.7457616 (3)	total: 368ms	remaining: 123ms

bestTest = 3.788368224
bestIteration = 49

6:	loss: 3.7883682	best: 3.7883682 (6)	total: 409ms	remaining: 58.5ms

bestTest = 3.452184786
bestIteration = 49

7:	loss: 3.4521848	best: 3.4521848 (7)	total: 456ms	remaining: 0us
Estimating final quality...

Best Params :  {'iterations': 50, 'learning_rate': 0.1, 'bootstrap_type': 'No'}

NOTE: Please feel free to skip this section if you are in hurry and have already understood how to perform a randomized search with Catboost from earlier examples.

The CatBoostRegressor also has a randomized_search() method which can be used to perform a randomized search with it. We have explained it below with a simple example.

booster = CatBoostRegressor()

params = {
            'iterations':[5,50,],
            'learning_rate':[0.01, 0.1],
            'bootstrap_type':['Bayesian', 'Bernoulli', 'MVS']
}

search_results = booster.randomized_search(params, X_train, Y_train, cv=5, n_iter=8)

print("\nBest Params : ", search_results['params'])
bestTest = 22.43710864
bestIteration = 4

0:	loss: 22.4371086	best: 22.4371086 (0)	total: 112ms	remaining: 783ms

bestTest = 22.43544339
bestIteration = 4

1:	loss: 22.4354434	best: 22.4354434 (1)	total: 123ms	remaining: 370ms

bestTest = 22.43002952
bestIteration = 4

2:	loss: 22.4300295	best: 22.4300295 (2)	total: 135ms	remaining: 224ms

bestTest = 15.67950464
bestIteration = 4

3:	loss: 15.6795046	best: 15.6795046 (3)	total: 145ms	remaining: 145ms

bestTest = 15.6064376
bestIteration = 4

4:	loss: 15.6064376	best: 15.6064376 (4)	total: 155ms	remaining: 93ms

bestTest = 15.6936908
bestIteration = 4

5:	loss: 15.6936908	best: 15.6064376 (4)	total: 165ms	remaining: 54.9ms

bestTest = 15.92112385
bestIteration = 49

6:	loss: 15.9211238	best: 15.6064376 (4)	total: 263ms	remaining: 37.6ms

bestTest = 3.654791242
bestIteration = 49

7:	loss: 3.6547912	best: 3.6547912 (7)	total: 292ms	remaining: 0us
Estimating final quality...

Best Params :  {'iterations': 50, 'learning_rate': 0.1, 'bootstrap_type': 'Bernoulli'}

8. CatBoostClassifier (Scikit-Learn Like API)

The catboost provides an estimator named CatBoostClassifier which can be used directly for regression problems. It accepts the same parameters that were given to CatBoost as a dictionary directly.

8.1 Binary Classification Example

Below we have explained how we can perform binary classification using CatBoostClassifier.

from catboost import CatBoostClassifier

X_train, X_test, Y_train, Y_test = train_test_split(breast_cancer.data, breast_cancer.target, train_size=0.9,
                                                    stratify=breast_cancer.target,
                                                    random_state=123)


booster = CatBoostClassifier(iterations=100, verbose=10)

booster.fit(X_train, Y_train, eval_set=(X_test, Y_test))
booster.set_feature_names(breast_cancer.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  Accuracy : %.2f"%booster.score(X_test, Y_test))
print("Train Accuracy : %.2f"%booster.score(X_train, Y_train))
Learning rate set to 0.073131
0:	learn: 0.5730087	test: 0.5715369	best: 0.5715369 (0)	total: 7.87ms	remaining: 779ms
10:	learn: 0.1564599	test: 0.1748713	best: 0.1748713 (10)	total: 104ms	remaining: 842ms
20:	learn: 0.0811663	test: 0.1047480	best: 0.1047480 (20)	total: 146ms	remaining: 548ms
30:	learn: 0.0522608	test: 0.0798318	best: 0.0798318 (30)	total: 170ms	remaining: 379ms
40:	learn: 0.0391529	test: 0.0681539	best: 0.0681539 (40)	total: 194ms	remaining: 279ms
50:	learn: 0.0296856	test: 0.0594379	best: 0.0590864 (49)	total: 234ms	remaining: 225ms
60:	learn: 0.0242369	test: 0.0543715	best: 0.0543715 (60)	total: 263ms	remaining: 168ms
70:	learn: 0.0188321	test: 0.0501147	best: 0.0501147 (70)	total: 287ms	remaining: 117ms
80:	learn: 0.0160430	test: 0.0495876	best: 0.0484613 (77)	total: 316ms	remaining: 74.1ms
90:	learn: 0.0133933	test: 0.0439943	best: 0.0439943 (90)	total: 345ms	remaining: 34.1ms
99:	learn: 0.0115672	test: 0.0413455	best: 0.0413455 (99)	total: 379ms	remaining: 0us

bestTest = 0.04134545311
bestIteration = 99


Test  Accuracy : 0.98
Train Accuracy : 1.00

The CatBoostClassifier provides a method named predict_proba() which can be used to generate output as a list of probabilities.

booster.predict_proba(X_test)[:5]
array([[9.98702599e-01, 1.29740117e-03],
       [7.61900642e-03, 9.92380994e-01],
       [9.99418319e-01, 5.81681361e-04],
       [4.00919216e-03, 9.95990808e-01],
       [1.43614433e-03, 9.98563856e-01]])
booster.predict_log_proba(X_test)[:5]
array([[-1.29824353e-03, -6.64739211e+00],
       [-4.87710931e+00, -7.64817932e-03],
       [-5.81850604e-04, -7.44958775e+00],
       [-5.51916551e+00, -4.01725051e-03],
       [-6.54579330e+00, -1.43717657e-03]])

Important Attributes & Methods of "CatBoostClassifier"

It has the same attributes and methods which are available with the CatBoost estimator.

The CatBoostClassifier also has grid_search() and randomized_search() methods which work exactly the same way as CatBoost and CatBoostRegresor hence we have not repeated the code again to explain it.

8.2 Multi-Class Classification Example

NOTE: Please feel free to skip this section if you are in hurry and have already understood how to use "CatBoostClassifier" for classification tasks using our previous "binary classification" example.

Below we have given a simple example which explains how CatBoostClassifier can be used for multi-class classification problems.

from catboost import CatBoostClassifier

X_train, X_test, Y_train, Y_test = train_test_split(wine.data, wine.target, train_size=0.9,
                                                    stratify=wine.target,
                                                    random_state=123)


booster = CatBoostClassifier(iterations=100, verbose=10)

booster.fit(X_train, Y_train, eval_set=(X_test, Y_test))
booster.set_feature_names(wine.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  Accuracy : %.2f"%booster.score(X_test, Y_test))
print("Train Accuracy : %.2f"%booster.score(X_train, Y_train))
Learning rate set to 0.250848
0:	learn: 0.8810930	test: 0.9177696	best: 0.9177696 (0)	total: 3.75ms	remaining: 371ms
10:	learn: 0.2073324	test: 0.3310180	best: 0.3310180 (10)	total: 30.7ms	remaining: 249ms
20:	learn: 0.0968205	test: 0.2342860	best: 0.2342860 (20)	total: 55ms	remaining: 207ms
30:	learn: 0.0585815	test: 0.1975512	best: 0.1969462 (29)	total: 78ms	remaining: 174ms
40:	learn: 0.0403924	test: 0.1881050	best: 0.1881050 (40)	total: 99.7ms	remaining: 144ms
50:	learn: 0.0295660	test: 0.1741516	best: 0.1741516 (50)	total: 121ms	remaining: 117ms
60:	learn: 0.0231273	test: 0.1707485	best: 0.1683297 (58)	total: 137ms	remaining: 87.5ms
70:	learn: 0.0188628	test: 0.1692754	best: 0.1683297 (58)	total: 148ms	remaining: 60.6ms
80:	learn: 0.0156153	test: 0.1676627	best: 0.1658585 (78)	total: 158ms	remaining: 37.1ms
90:	learn: 0.0135755	test: 0.1636182	best: 0.1635633 (87)	total: 166ms	remaining: 16.5ms
99:	learn: 0.0121369	test: 0.1616905	best: 0.1616905 (99)	total: 174ms	remaining: 0us

bestTest = 0.1616905315
bestIteration = 99


Test  Accuracy : 0.94
Train Accuracy : 1.00
booster.predict_proba(X_test)[:5]
array([[0.01434538, 0.01599883, 0.96965578],
       [0.00373846, 0.99234009, 0.00392145],
       [0.06538219, 0.91376836, 0.02084945],
       [0.87954488, 0.0982254 , 0.02222972],
       [0.00157402, 0.99693869, 0.00148729]])

9. Cross Validation Example

The catboost provides a method named cv() which can be used to perform cross-validation on data. Below we have explained with few examples of how we can perform cross-validation in catboost.

from catboost import cv, Pool

data = Pool(boston.data, boston.target)

cv(data, params={'iterations':10, 'loss_function':'RMSE'}, nfold=5)
0:	learn: 23.7392457	test: 23.7214209	best: 23.7214209 (0)	total: 1.45s	remaining: 13.1s
1:	learn: 23.1657012	test: 23.1529352	best: 23.1529352 (1)	total: 3.09s	remaining: 12.4s
2:	learn: 22.5952486	test: 22.5993739	best: 22.5993739 (2)	total: 4.65s	remaining: 10.9s
3:	learn: 22.0752979	test: 22.0892861	best: 22.0892861 (3)	total: 6.2s	remaining: 9.3s
4:	learn: 21.5334643	test: 21.5535213	best: 21.5535213 (4)	total: 7.73s	remaining: 7.73s
5:	learn: 21.0432351	test: 21.0794070	best: 21.0794070 (5)	total: 9.42s	remaining: 6.28s
6:	learn: 20.5481253	test: 20.5972173	best: 20.5972173 (6)	total: 10.9s	remaining: 4.66s
7:	learn: 20.0763160	test: 20.1390519	best: 20.1390519 (7)	total: 12.4s	remaining: 3.1s
8:	learn: 19.6266408	test: 19.6996881	best: 19.6996881 (8)	total: 13.9s	remaining: 1.55s
9:	learn: 19.1627362	test: 19.2500695	best: 19.2500695 (9)	total: 15.3s	remaining: 0us
iterations test-RMSE-mean test-RMSE-std train-RMSE-mean train-RMSE-std
0 0 23.721421 1.368552 23.739246 0.332811
1 1 23.152935 1.371173 23.165701 0.323821
2 2 22.599374 1.366576 22.595249 0.316548
3 3 22.089286 1.360462 22.075298 0.308760
4 4 21.553521 1.349079 21.533464 0.301004
5 5 21.079407 1.339058 21.043235 0.292612
6 6 20.597217 1.339418 20.548125 0.287159
7 7 20.139052 1.336868 20.076316 0.281062
8 8 19.699688 1.325541 19.626641 0.280764
9 9 19.250069 1.307312 19.162736 0.269559
from catboost import cv, Pool

data = Pool(breast_cancer.data, breast_cancer.target)

cv(data, params={'iterations':10, 'loss_function':'CrossEntropy'}, nfold=5)
0:	learn: 0.6443925	test: 0.6464482	best: 0.6464482 (0)	total: 1.79s	remaining: 16.1s
1:	learn: 0.5999487	test: 0.6040791	best: 0.6040791 (1)	total: 3.35s	remaining: 13.4s
2:	learn: 0.5593831	test: 0.5650989	best: 0.5650989 (2)	total: 5.01s	remaining: 11.7s
3:	learn: 0.5240421	test: 0.5317291	best: 0.5317291 (3)	total: 6.56s	remaining: 9.85s
4:	learn: 0.4873987	test: 0.4971399	best: 0.4971399 (4)	total: 8.14s	remaining: 8.14s
5:	learn: 0.4602370	test: 0.4709405	best: 0.4709405 (5)	total: 9.72s	remaining: 6.48s
6:	learn: 0.4290721	test: 0.4404948	best: 0.4404948 (6)	total: 11.3s	remaining: 4.83s
7:	learn: 0.4036246	test: 0.4172114	best: 0.4172114 (7)	total: 12.8s	remaining: 3.2s
8:	learn: 0.3767254	test: 0.3908014	best: 0.3908014 (8)	total: 14.4s	remaining: 1.59s
9:	learn: 0.3558123	test: 0.3714315	best: 0.3714315 (9)	total: 15.9s	remaining: 0us
iterations test-CrossEntropy-mean test-CrossEntropy-std train-CrossEntropy-mean train-CrossEntropy-std
0 0 0.646448 0.007269 0.644393 0.004051
1 1 0.604079 0.009152 0.599949 0.005777
2 2 0.565099 0.007957 0.559383 0.004786
3 3 0.531729 0.008418 0.524042 0.004339
4 4 0.497140 0.011098 0.487399 0.004073
5 5 0.470941 0.010447 0.460237 0.004030
6 6 0.440495 0.011888 0.429072 0.004206
7 7 0.417211 0.012052 0.403625 0.005801
8 8 0.390801 0.012969 0.376725 0.006292
9 9 0.371432 0.013297 0.355812 0.007268

10. Saving and Loading Model

Each catboost estimator(CatBoost, CatBoostClassifier & CatBoostRegressor) provides method named save_model() and load_model() which can be used to save trained model and reload saved model.

Below we have explained with a simple example of how we can save and load the catboost model. We have even evaluated the loaded model again to verify.

from catboost import Pool, CatBoost
from catboost.utils import eval_metric

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoost({'verbose':10, 'iterations':100})
booster.fit(X_train,Y_train, eval_set=(X_test,Y_test))
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Learning rate set to 0.166668
0:	learn: 8.0520453	test: 10.1798347	best: 10.1798347 (0)	total: 2.36ms	remaining: 234ms
10:	learn: 3.8810707	test: 6.4769275	best: 6.4769275 (10)	total: 24ms	remaining: 194ms
20:	learn: 2.7929439	test: 5.4534123	best: 5.4534123 (20)	total: 38.6ms	remaining: 145ms
30:	learn: 2.3461951	test: 5.1077987	best: 5.1077987 (30)	total: 47.5ms	remaining: 106ms
40:	learn: 2.0812703	test: 4.8640181	best: 4.8640181 (40)	total: 54.5ms	remaining: 78.4ms
50:	learn: 1.8649713	test: 4.7165995	best: 4.7052137 (48)	total: 60.5ms	remaining: 58.2ms
60:	learn: 1.6934276	test: 4.6191067	best: 4.6191067 (60)	total: 66.3ms	remaining: 42.4ms
70:	learn: 1.5620403	test: 4.5825150	best: 4.5825150 (70)	total: 72ms	remaining: 29.4ms
80:	learn: 1.4340285	test: 4.5732299	best: 4.5389627 (74)	total: 77.7ms	remaining: 18.2ms
90:	learn: 1.3495901	test: 4.5714853	best: 4.5389627 (74)	total: 83.4ms	remaining: 8.25ms
99:	learn: 1.2619128	test: 4.5646310	best: 4.5389627 (74)	total: 88.6ms	remaining: 0us

bestTest = 4.538962725
bestIteration = 74

Shrink model to first 75 iterations.

Test  R2 : 0.82
Train R2 : 0.97

How to Save "CatBoost" Model using "save_model()" Method?

booster.save_model("catboost_regressor.model")

How to Load "CatBoost" Model using "load_model()" Method?

loaded_booster = CatBoost()

loaded_booster.load_model("catboost_regressor.model")
<catboost.core.CatBoost at 0x7f21dfa427f0>
test_preds = loaded_booster.predict(X_test)
train_preds = loaded_booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Test  R2 : 0.82
Train R2 : 0.97

11. Plotting Functionalities in CatBoost

11.1 Visualize Training Loss and Metric Values

Catboost provides us with a few simple plotting functionalities which can be useful to analyze model performance. The catboost estimator's fit() method has a parameter named plot which is set to True will plot the result of the training process. We have explained below how we can plot the training process.

The grid_search() and randomized_search() methods of the estimator’s also had plot parameter which if set to True will generate a plot for them.

from catboost import Pool, CatBoost
from catboost.utils import eval_metric

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoost({'verbose':0, 'iterations':100})
booster.fit(X_train,Y_train, eval_set=(X_test,Y_test), plot=True);
booster.set_feature_names(boston.feature_names)

#test_preds = booster.predict(X_test)
#train_preds = booster.predict(X_train)

#print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
#print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])

CatBoost - An In-Depth Guide

The cv() method of catboost also has a plot parameter which if set to True will generate a plot for cross-validation. We have explained the usage of the same below.

from catboost import cv

data = Pool(breast_cancer.data, breast_cancer.target)

cv(data, params={'iterations':10, 'loss_function':'CrossEntropy'}, nfold=5, plot=True, verbose=False);

CatBoost - An In-Depth Guide

11.2 Visualize Individual Tree of Ensemble using "plot_tree()"

Each catboost estimators have a method named plot_tree() which accepts integer and plots tree with that index from an ensemble of trees. Below we have plotted the 2nd tree. The output of the method is graphviz graph which we have saved.

out = booster.plot_tree(1)

out.render('tree', format="png")

out

CatBoost - An In-Depth Guide

11.3 Visualize Important Statistics of Data Features using "calc_feature_statistics()"

The calc_feature_statistics() method estimator takes as input data, target labels and feature names. It then generated a chart showing statistics of the feature using a trained model, dataset, and target labels.

Below we have generated feature statistics for the LSTAT feature.

booster.calc_feature_statistics(X_train, Y_train, feature="LSTAT");

CatBoost - An In-Depth Guide

11.4 Visualize Individual Predictions using "plot_predictions()"

The plot_predictions() function takes as input dataset and list of features names/feature indices. It then sequentially vary the value of given features and calculate predictions.

booster.plot_predictions(X_test[:5], features_to_change=["LSTAT"]);

CatBoost - An In-Depth Guide

11.5 Partial Dependence Plot of Features using "plot_partial_dependence()"

It generates a partial dependence plot of the feature based on given data.

booster.plot_partial_dependence(Pool(X_train, Y_train)
                                , features=["LSTAT"]);

CatBoost - An In-Depth Guide

11.6 Visualization to Compare Performance Of Different Models using "compare()" Method

The catboost estimators have a method named compare() which takes as input another estimator and a list of metrics to compare the performance of both models on a specified list of metrics. Below we have explained how we can compare the performance of two different catboost estimators using the compare() method. We have used metrics R2, RMSE, and MAE for it.

from catboost import Pool, CatBoost
from catboost.utils import eval_metric

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster1 = CatBoost({'verbose':0, 'iterations':100, 'learning_rate':0.1, 'bootstrap_type':'Bayesian'})
booster1.fit(X_train,Y_train, eval_set=(X_test,Y_test))
booster1.set_feature_names(boston.feature_names)

test_preds = booster1.predict(X_test)
train_preds = booster1.predict(X_train)

print("Model-1")
print("Test  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])

booster2 = CatBoost({'verbose':0, 'iterations':100, 'learning_rate':0.3, 'bootstrap_type':'No'})
booster2.fit(X_train,Y_train, eval_set=(X_test,Y_test))
booster2.set_feature_names(boston.feature_names)

test_preds = booster2.predict(X_test)
train_preds = booster2.predict(X_train)

print("\nModel-2")
print("Test  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Model-1
Test  R2 : 0.80
Train R2 : 0.96

Model-2
Test  R2 : 0.87
Train R2 : 0.99

How to Compare Performance of Different CatBoost Models?

booster1.compare(booster2, data=Pool(X_test,Y_test), metrics=["R2", "RMSE", "MAE"])

CatBoost - An In-Depth Guide

12. Recovering Interrupted Training using Snapshots

Catboost provides support for saving the training process and recovering the training process if it was interrupted. It provides us with parameters named save_snapshot, snapshot_file, and snapshot_interval which save training results at particular intervals. We can then rerun training from the interrupted part rather than from the beginning using these parameters.

Below we are training CatBoostRegressor for 15000 iterations so that it takes time to complete. We are then interrupting training after a few seconds. We have set the save_snapshot parameter of the fit() method to True so that it takes a snapshot during training. The snapshot_interval is set to 1 so that snapshots are taken every 1 minute. The snapshots are saved in a file named catboost_snapshots.temp.

from catboost import Pool
from catboost.utils import eval_metric
from catboost import CatBoost, CatBoostClassifier, CatBoostRegressor
from sklearn.model_selection import train_test_split

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoostRegressor(verbose=1000, iterations=15000)

booster.fit(X_train, Y_train,save_snapshot=True, snapshot_file="catboost_snapshots.temp",snapshot_interval=1)
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Learning rate set to 0.004332
0:	learn: 8.9345986	total: 817us	remaining: 12.3s
1000:	learn: 2.4437755	total: 613ms	remaining: 8.57s
2000:	learn: 1.7841487	total: 1.33s	remaining: 8.63s
3000:	learn: 1.4364310	total: 1.92s	remaining: 7.66s
4000:	learn: 1.1695109	total: 2.56s	remaining: 7.04s
5000:	learn: 0.9645754	total: 3.22s	remaining: 6.45s
6000:	learn: 0.8062126	total: 3.8s	remaining: 5.7s
---------------------------------------------------------------------------
KeyboardInterrupt                         Traceback (most recent call last)
~/anaconda3/lib/python3.7/site-packages/catboost/core.py in _fit(self, X, y, cat_features, text_features, embedding_features, pairs, sample_weight, group_id, group_weight, subgroup_id, pairs_weight, baseline, use_best_model, eval_set, verbose, logging_level, plot, column_description, verbose_eval, metric_period, silent, early_stopping_rounds, save_snapshot, snapshot_file, snapshot_interval, init_model)
   1808                 allow_clear_pool,
-> 1809                 train_params["init_model"]
   1810             )

~/anaconda3/lib/python3.7/site-packages/catboost/core.py in _train(self, train_pool, test_pool, params, allow_clear_pool, init_model)
   1257     def _train(self, train_pool, test_pool, params, allow_clear_pool, init_model):
-> 1258         self._object._train(train_pool, test_pool, params, allow_clear_pool, init_model._object if init_model else None)
   1259         self._set_trained_model_attributes()

_catboost.pyx in _catboost._CatBoost._train()

_catboost.pyx in _catboost._CatBoost._train()

KeyboardInterrupt:

During handling of the above exception, another exception occurred:

KeyboardInterrupt                         Traceback (most recent call last)
<ipython-input-22-19031eb2f180> in <module>
      8 booster = CatBoostRegressor(verbose=1000, iterations=15000)
      9
---> 10 booster.fit(X_train, Y_train,save_snapshot=True, snapshot_file="catboost_snapshots.temp",snapshot_interval=1)
     11 booster.set_feature_names(boston.feature_names)
     12

~/anaconda3/lib/python3.7/site-packages/catboost/core.py in fit(self, X, y, cat_features, sample_weight, baseline, use_best_model, eval_set, verbose, logging_level, plot, column_description, verbose_eval, metric_period, silent, early_stopping_rounds, save_snapshot, snapshot_file, snapshot_interval, init_model)
   4848                          use_best_model, eval_set, verbose, logging_level, plot, column_description,
   4849                          verbose_eval, metric_period, silent, early_stopping_rounds,
-> 4850                          save_snapshot, snapshot_file, snapshot_interval, init_model)
   4851
   4852     def predict(self, data, prediction_type=None, ntree_start=0, ntree_end=0, thread_count=-1, verbose=None):

~/anaconda3/lib/python3.7/site-packages/catboost/core.py in _fit(self, X, y, cat_features, text_features, embedding_features, pairs, sample_weight, group_id, group_weight, subgroup_id, pairs_weight, baseline, use_best_model, eval_set, verbose, logging_level, plot, column_description, verbose_eval, metric_period, silent, early_stopping_rounds, save_snapshot, snapshot_file, snapshot_interval, init_model)
   1807                 params,
   1808                 allow_clear_pool,
-> 1809                 train_params["init_model"]
   1810             )
   1811

KeyboardInterrupt:

Below we are again starting the training process after interruption and we can notice that it has started from where the last snapshot was taken.

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoostRegressor(verbose=1000, iterations=15000)

booster.fit(X_train, Y_train, save_snapshot=True, snapshot_file="catboost_snapshots.temp",snapshot_interval=1)
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Learning rate set to 0.004332
7000:	learn: 0.6827440	total: 3.83s	remaining: 0us
8000:	learn: 0.5833276	total: 3.83s	remaining: 0us
9000:	learn: 0.5005558	total: 3.83s	remaining: 0us
10000:	learn: 0.4320653	total: 3.83s	remaining: 0us
11000:	learn: 0.3751506	total: 3.83s	remaining: 0us
12000:	learn: 0.3275477	total: 3.83s	remaining: 0us
13000:	learn: 0.2869134	total: 3.83s	remaining: 0us
14000:	learn: 0.2523760	total: 3.83s	remaining: 0us
14999:	learn: 0.2222595	total: 3.83s	remaining: 0us

Test  R2 : 0.86
Train R2 : 1.00

13. Early Stop Training to Avoid Overfitting

The catboost provides a parameter named early_stopping_rounds in the fit() method of all estimators which can be set to some integer. The training process will stop if the training loss function output is not improving constantly for a specified number of rounds (specified using the early_stopping_rounds parameter).

Below we have explained with a simple example of how we can use early_stopping_rounds. We can notice that training stops when it does improve loss for 5 consecutive rounds.

from catboost import Pool
from catboost.utils import eval_metric

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoost({'verbose':10, 'iterations':100})
booster.fit(X_train, Y_train, eval_set=(test_data), early_stopping_rounds=5)
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])

print("\nNumber of Trees in Ensemble : ", booster.tree_count_)
Learning rate set to 0.166668
0:	learn: 8.0520453	test: 10.1798347	best: 10.1798347 (0)	total: 791us	remaining: 78.4ms
10:	learn: 3.8810707	test: 6.4769275	best: 6.4769275 (10)	total: 8.54ms	remaining: 69.1ms
20:	learn: 2.7929439	test: 5.4534123	best: 5.4534123 (20)	total: 14.2ms	remaining: 53.6ms
30:	learn: 2.3461951	test: 5.1077987	best: 5.1077987 (30)	total: 19.9ms	remaining: 44.3ms
40:	learn: 2.0812703	test: 4.8640181	best: 4.8640181 (40)	total: 25.6ms	remaining: 36.8ms
50:	learn: 1.8649713	test: 4.7165995	best: 4.7052137 (48)	total: 31.2ms	remaining: 30ms
60:	learn: 1.6934276	test: 4.6191067	best: 4.6191067 (60)	total: 36.8ms	remaining: 23.6ms
70:	learn: 1.5620403	test: 4.5825150	best: 4.5825150 (70)	total: 43.1ms	remaining: 17.6ms
Stopped by overfitting detector  (5 iterations wait)

bestTest = 4.538962725
bestIteration = 74

Shrink model to first 75 iterations.

Test  R2 : 0.82
Train R2 : 0.97

Number of Trees in Ensemble :  75

14. Monotonic Constraints

The monotonic constraints let us specify the increasing, decreasing, or no monotone relation of a feature with a target. We can specify a monotone value of 1,0 or -1 for each feature to show the increasing, none, and decreasing relation of the feature with the target by setting the monotone_constraints parameter. Below we have explained the usage of monotonic constraints for regression tasks using the Boston dataset.

Please make a note that the below estimator is not giving a good R2 score because we have randomly set monotonic constraints values just for explanation purposes.

from catboost import Pool
from catboost.utils import eval_metric

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoost({'verbose':10, 'iterations':100,
                    'monotone_constraints':[1,0,0,-1,1,-1,0,-1,0,0, -1, 0,1]})
booster.fit(X_train, Y_train, eval_set=(test_data))
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])

print("\nNumber of Trees in Ensemble : ", booster.tree_count_)
Learning rate set to 0.166668
0:	learn: 8.4082824	test: 10.6123467	best: 10.6123467 (0)	total: 4.76ms	remaining: 472ms
10:	learn: 6.1844246	test: 9.1819333	best: 9.1819333 (10)	total: 42.9ms	remaining: 347ms
20:	learn: 5.4849113	test: 8.7248760	best: 8.7248760 (20)	total: 80.1ms	remaining: 301ms
30:	learn: 5.0819403	test: 8.4086976	best: 8.4086976 (30)	total: 118ms	remaining: 262ms
40:	learn: 4.7705217	test: 8.0945726	best: 8.0945726 (40)	total: 155ms	remaining: 223ms
50:	learn: 4.4499139	test: 8.0709417	best: 8.0296328 (42)	total: 192ms	remaining: 184ms
60:	learn: 4.1723597	test: 8.0705261	best: 8.0296328 (42)	total: 245ms	remaining: 157ms
70:	learn: 3.9376692	test: 7.9487736	best: 7.9395332 (69)	total: 284ms	remaining: 116ms
80:	learn: 3.7828106	test: 7.9343475	best: 7.8989299 (78)	total: 321ms	remaining: 75.4ms
90:	learn: 3.6612582	test: 7.8562065	best: 7.8512619 (89)	total: 359ms	remaining: 35.6ms
99:	learn: 3.4974324	test: 7.7380102	best: 7.7302591 (98)	total: 394ms	remaining: 0us

bestTest = 7.73025906
bestIteration = 98

Shrink model to first 99 iterations.

Test  R2 : 0.48
Train R2 : 0.85

Number of Trees in Ensemble :  99

15. Custom Evaluation Metric

As a part of this section, we'll explain how we can use a custom evaluation metric with catboost. We can design a class that can be used as a custom evaluation metric but it should have below mentioned three methods included in it.

  • is_max_optimal() - This method returns True if we want to maximize metric else False.
  • evaluate() - This method returns an error and total weight for a list of prediction and target labels. The logic of calculating error for a list of values should be included here.
  • get_final_error() - This method returns actual metric value based on total error and total weight. The logic of calculating the final error based on weights should be included here.

Below we have created a simple mean absolute error metric. We have then given the same metric to the eval_metric method of CatBoostRegressor. We can notice from the training results that it is printing mean absolute error at every 10 iterations for the evaluation dataset which is a test set in our case.

class MeanAbsoluteError(object):
    def is_max_optimal(self):
        ## Return True if We want to Maximize metric else false if want to minimize
        ## We have passed False because we want to decrease metric
        return False

    def evaluate(self, approxes, target, weight):
        error = 0
        weight_sum = 0

        for i in range(len(approxes[0])):
            w = 1.0 if weight is None else weight[i]
            error += w* (target[i] - approxes[0][i])
            weight_sum += w

        return error, 1.0 if weight is None else weight_sum

    def get_final_error(self, error, weight):
        # Returns final value of metric based on error and weight
        return error / weight
from catboost.utils import eval_metric
from catboost import CatBoostRegressor
from sklearn.model_selection import train_test_split

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoostRegressor(verbose=10, iterations=100,
                            eval_metric=MeanAbsoluteError(),
                            )
booster.fit(X_train, Y_train, eval_set=[(X_test, Y_test)])

booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Learning rate set to 0.166668
0:	learn: 24.2600634	test: 136.0999662	best: 136.0999662 (0)	total: 3.17ms	remaining: 314ms
10:	learn: 97.7562849	test: 68.6856874	best: 68.6856874 (10)	total: 29.2ms	remaining: 236ms
20:	learn: 52.6252278	test: 30.4887092	best: 30.4887092 (20)	total: 44.4ms	remaining: 167ms
30:	learn: 18.7700885	test: 18.4446486	best: 18.4446486 (30)	total: 53.9ms	remaining: 120ms
40:	learn: 11.3055473	test: 9.4733398	best: 9.4733398 (40)	total: 62.9ms	remaining: 90.5ms
50:	learn: 6.2744321	test: 5.7102511	best: 5.2957340 (49)	total: 71.2ms	remaining: 68.4ms
60:	learn: 2.7441574	test: 3.7928502	best: 3.7928502 (60)	total: 89.9ms	remaining: 57.5ms
70:	learn: 2.1414438	test: 2.3408031	best: 2.3408031 (70)	total: 97.3ms	remaining: 39.7ms
80:	learn: 2.1668637	test: 0.0583625	best: 0.0583625 (80)	total: 105ms	remaining: 24.6ms
90:	learn: -1.0705412	test: -1.2272650	best: -1.2272650 (90)	total: 112ms	remaining: 11.1ms
99:	learn: 2.3224568	test: -1.3544445	best: -1.3544445 (99)	total: 119ms	remaining: 0us

bestTest = -1.354444507
bestIteration = 99


Test  R2 : 0.82
Train R2 : 0.98

16. Custom Objective/Loss Function

As a part of this section, we'll explain how we can use the custom loss function with catboost. We can create a class that can be used as a custom loss function but it should have one method named calc_ders_range(). This method takes as an input list of predictions, actual target labels, and weights. It then returns a list of tuples where the first value in the tuple is the first derivative of the loss function and the second value is the second derivative of a loss function. The list of tuple must have the same length as the list of predictions and target labels passed to it.

We can then pass this class to the loss_function parameter of estimators. Below we have created a simple mean squared error loss function and explained usage of it with a simple example in the next cell.

class MeanSquaredErrorLoss(object):
    def calc_ders_range(self, approxes, targets, weights):
        # This function should return a list of pairs (der1, der2), where
        # der1 is the first derivative of the loss function with respect
        # to the predicted value, and der2 is the second derivative.
        result = []
        for index in range(len(targets)):
            der1 = 2*(targets[index] - approxes[index]) ## First Derivative of Loss Function
            der2 = -1                                   ## Second Derivative of Loss Function

            result.append((der1, der2))

        return result
from catboost.utils import eval_metric
from catboost import CatBoostRegressor
from sklearn.model_selection import train_test_split

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoostRegressor(verbose=10, iterations=100,
                            loss_function=MeanSquaredErrorLoss(),
                            eval_metric="R2"
                            )
booster.fit(X_train, Y_train, eval_set=[(X_test, Y_test)])
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
0:	learn: -5.4810607	test: -4.9178567	best: -4.9178567 (0)	total: 1.06ms	remaining: 105ms
10:	learn: -1.5021091	test: -1.6297951	best: -1.6297951 (10)	total: 14.7ms	remaining: 119ms
20:	learn: -0.0371187	test: -0.2945356	best: -0.2945356 (20)	total: 23.8ms	remaining: 89.6ms
30:	learn: 0.5014831	test: 0.2272055	best: 0.2272055 (30)	total: 32.1ms	remaining: 71.5ms
40:	learn: 0.7173740	test: 0.4787453	best: 0.4787453 (40)	total: 41.1ms	remaining: 59.2ms
50:	learn: 0.8195089	test: 0.6193570	best: 0.6193570 (50)	total: 50.3ms	remaining: 48.3ms
60:	learn: 0.8656855	test: 0.6928399	best: 0.6928399 (60)	total: 59.9ms	remaining: 38.3ms
70:	learn: 0.8906273	test: 0.7310830	best: 0.7310830 (70)	total: 69ms	remaining: 28.2ms
80:	learn: 0.9081062	test: 0.7554555	best: 0.7554555 (80)	total: 78.1ms	remaining: 18.3ms
90:	learn: 0.9210548	test: 0.7773323	best: 0.7773323 (90)	total: 87.3ms	remaining: 8.64ms
99:	learn: 0.9290782	test: 0.7905164	best: 0.7905164 (99)	total: 95.8ms	remaining: 0us

bestTest = 0.7905163648
bestIteration = 99


Test  R2 : 0.79
Train R2 : 0.93

17. How to Use CatBoost with Text Data?

NOTE: Please feel free to skip this section if you are working with tabular data. You can refer it later when you want to learn about how to use Catboost for tasks involving text datasets.

As a part of this section, we'll explain with a simple example of how we can handle text data with catboost. We'll start by loading the spam/ham dataset available from the UCI website. We have included the code below to download it. We have then loaded the dataset as a list of text and labels.

!wget https://archive.ics.uci.edu/ml/machine-learning-databases/00228/smsspamcollection.zip
!unzip smsspamcollection.zip
--2020-11-29 22:01:42--  https://archive.ics.uci.edu/ml/machine-learning-databases/00228/smsspamcollection.zip
Resolving archive.ics.uci.edu (archive.ics.uci.edu)... 128.195.10.252
Connecting to archive.ics.uci.edu (archive.ics.uci.edu)|128.195.10.252|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 203415 (199K) [application/x-httpd-php]
Saving to: ‘smsspamcollection.zip’

smsspamcollection.z 100%[===================>] 198.65K  52.8KB/s    in 3.8s

2020-11-29 22:01:48 (52.8 KB/s) - ‘smsspamcollection.zip’ saved [203415/203415]

Archive:  smsspamcollection.zip
  inflating: SMSSpamCollection
  inflating: readme
import collections

with open('SMSSpamCollection') as f:
    data = [line.strip().split('\t') for line in f.readlines()]

y, text = zip(*data)

collections.Counter(y)
Counter({'ham': 4827, 'spam': 747})

Example 1

The simplest way to work with text data is to let catboost handle the column with text data by itself. Catboost will tokenize data and convert it to a float array by itself. We'll be using catboost's internal Pool data structure for this purpose. The Pool data structure has an argument named text_features which accepts a list of indices in data that holds text data. As our dataset only has text data, we have given 0 in that list. We have then normally created the CatBoostClassifier instance and trained it on train data. We have later evaluated it on test data to check accuracy as well which is very impressive.

The catboost estimators have a parameter named text_processing which has some default JSON values which are responsible for handling text data. The default value is available at this link.

from catboost import CatBoostClassifier, Pool
from sklearn.model_selection import train_test_split

X_train, X_test, Y_train, Y_test = train_test_split(pd.DataFrame(text), y, train_size=0.9, stratify=y, random_state=123)

train_data = Pool(X_train, Y_train, text_features=[0])
test_data = Pool(X_test, Y_test, text_features=[0])

booster = CatBoostClassifier(iterations=10, learning_rate=0.03, eval_metric='Accuracy')

booster.fit(train_data, eval_set=test_data)

print("\nTest  Accuracy : %.2f"%booster.score(train_data))
print("Train Accuracy : %.2f"%booster.score(test_data))
0:	learn: 0.9742823	test: 0.9856631	best: 0.9856631 (0)	total: 55.2ms	remaining: 497ms
1:	learn: 0.9742823	test: 0.9856631	best: 0.9856631 (0)	total: 99.8ms	remaining: 399ms
2:	learn: 0.9748804	test: 0.9892473	best: 0.9892473 (2)	total: 146ms	remaining: 340ms
3:	learn: 0.9744817	test: 0.9856631	best: 0.9892473 (2)	total: 191ms	remaining: 287ms
4:	learn: 0.9742823	test: 0.9856631	best: 0.9892473 (2)	total: 237ms	remaining: 237ms
5:	learn: 0.9744817	test: 0.9856631	best: 0.9892473 (2)	total: 307ms	remaining: 205ms
6:	learn: 0.9752791	test: 0.9892473	best: 0.9892473 (2)	total: 358ms	remaining: 153ms
7:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 403ms	remaining: 101ms
8:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 448ms	remaining: 49.7ms
9:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 493ms	remaining: 0us

bestTest = 0.9892473118
bestIteration = 2

Shrink model to first 3 iterations.

Test  Accuracy : 0.99
Train Accuracy : 0.99

Example 2

As a part of our second example, we have explained how we can specify the value for the text_processing parameter if we want to impose a different way of handling text data.

from catboost import CatBoostClassifier, Pool
from sklearn.model_selection import train_test_split

X_train, X_test, Y_train, Y_test = train_test_split(pd.DataFrame(text), y, train_size=0.9, stratify=y, random_state=123)

train_data = Pool(X_train, Y_train, text_features=[0])
test_data = Pool(X_test, Y_test, text_features=[0])

booster = CatBoostClassifier(iterations=10, learning_rate=0.03, eval_metric='Accuracy',
                             text_processing=['NaiveBayes+Word|BoW+Word:min_token_occurrence=5'])

booster.fit(train_data, eval_set=test_data)

print("\nTest  Accuracy : %.2f"%booster.score(train_data))
print("Train Accuracy : %.2f"%booster.score(test_data))
0:	learn: 0.9742823	test: 0.9856631	best: 0.9856631 (0)	total: 45.3ms	remaining: 408ms
1:	learn: 0.9742823	test: 0.9856631	best: 0.9856631 (0)	total: 91.1ms	remaining: 364ms
2:	learn: 0.9748804	test: 0.9892473	best: 0.9892473 (2)	total: 138ms	remaining: 322ms
3:	learn: 0.9744817	test: 0.9856631	best: 0.9892473 (2)	total: 184ms	remaining: 276ms
4:	learn: 0.9742823	test: 0.9856631	best: 0.9892473 (2)	total: 230ms	remaining: 230ms
5:	learn: 0.9744817	test: 0.9856631	best: 0.9892473 (2)	total: 302ms	remaining: 201ms
6:	learn: 0.9752791	test: 0.9892473	best: 0.9892473 (2)	total: 353ms	remaining: 151ms
7:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 399ms	remaining: 99.6ms
8:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 444ms	remaining: 49.4ms
9:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 490ms	remaining: 0us

bestTest = 0.9892473118
bestIteration = 2

Shrink model to first 3 iterations.

Test  Accuracy : 0.99
Train Accuracy : 0.99

Example 3

Our third example for text data gives us another example of handling text data with the text_processing parameter.

from catboost import CatBoostClassifier, Pool
from sklearn.model_selection import train_test_split

X_train, X_test, Y_train, Y_test = train_test_split(pd.DataFrame(text), y, train_size=0.9, stratify=y, random_state=123)

train_data = Pool(X_train, Y_train, text_features=[0])
test_data = Pool(X_test, Y_test, text_features=[0])

booster = CatBoostClassifier(iterations=10, learning_rate=0.03, eval_metric='Accuracy',
                             text_processing=['NaiveBayes+Word,BiGram|BoW:token_level_type=Word,top_tokens_count=1000+Word,BiGram'])

booster.fit(train_data, eval_set=test_data)

print("\nTest  Accuracy : %.2f"%booster.score(train_data))
print("Train Accuracy : %.2f"%booster.score(test_data))
0:	learn: 0.9742823	test: 0.9856631	best: 0.9856631 (0)	total: 46.2ms	remaining: 416ms
1:	learn: 0.9742823	test: 0.9856631	best: 0.9856631 (0)	total: 92.9ms	remaining: 371ms
2:	learn: 0.9748804	test: 0.9892473	best: 0.9892473 (2)	total: 139ms	remaining: 324ms
3:	learn: 0.9744817	test: 0.9856631	best: 0.9892473 (2)	total: 185ms	remaining: 277ms
4:	learn: 0.9742823	test: 0.9856631	best: 0.9892473 (2)	total: 231ms	remaining: 231ms
5:	learn: 0.9744817	test: 0.9856631	best: 0.9892473 (2)	total: 293ms	remaining: 195ms
6:	learn: 0.9752791	test: 0.9892473	best: 0.9892473 (2)	total: 352ms	remaining: 151ms
7:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 399ms	remaining: 99.7ms
8:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 445ms	remaining: 49.4ms
9:	learn: 0.9750797	test: 0.9874552	best: 0.9892473 (2)	total: 490ms	remaining: 0us

bestTest = 0.9892473118
bestIteration = 2

Shrink model to first 3 iterations.

Test  Accuracy : 0.99
Train Accuracy : 0.99

Example 4

As a part of our fourth example for handling text data, we have used the TF-IDF vectorizer available from scikit-learn to transform our text data to float. All other parts of the code are almost the same as previous examples with the only difference that we are using TF-IDF transformed arrays for training and evaluation now.

If you are interested in learning about feature extraction from text data using scikit-learn then please feel free to check our tutorial on the same to get an in-depth idea about it.

from sklearn.feature_extraction.text import TfidfVectorizer, CountVectorizer

X_train, X_test, Y_train, Y_test = train_test_split(text, y, train_size=0.50, stratify=y, random_state=123)

vectorizer = TfidfVectorizer(max_features=500)

X_train_vect = vectorizer.fit_transform(X_train)
X_test_vect = vectorizer.transform(X_test)

train_data = Pool(X_train_vect.toarray(), Y_train) ## toarray() is added to prevent catboost from failing (to avoid sparse array error)
test_data = Pool(X_test_vect.toarray(), Y_test) ## toarray() is added to prevent catboost from failing (to avoid sparse array error)

booster = CatBoostClassifier(iterations=10)

booster.fit(train_data, eval_set=test_data)

print("\nTest  Accuracy : %.2f"%booster.score(train_data))
print("Train Accuracy : %.2f"%booster.score(test_data))
Learning rate set to 0.302592
0:	learn: 0.4257491	test: 0.4246194	best: 0.4246194 (0)	total: 9.53ms	remaining: 85.8ms
1:	learn: 0.2937232	test: 0.2930775	best: 0.2930775 (1)	total: 18.7ms	remaining: 74.7ms
2:	learn: 0.2358165	test: 0.2344989	best: 0.2344989 (2)	total: 27.5ms	remaining: 64.1ms
3:	learn: 0.2026422	test: 0.1992495	best: 0.1992495 (3)	total: 36.2ms	remaining: 54.4ms
4:	learn: 0.1799321	test: 0.1799717	best: 0.1799717 (4)	total: 44.8ms	remaining: 44.8ms
5:	learn: 0.1612395	test: 0.1644169	best: 0.1644169 (5)	total: 53.5ms	remaining: 35.7ms
6:	learn: 0.1459207	test: 0.1504466	best: 0.1504466 (6)	total: 62ms	remaining: 26.6ms
7:	learn: 0.1345363	test: 0.1389994	best: 0.1389994 (7)	total: 70.3ms	remaining: 17.6ms
8:	learn: 0.1250743	test: 0.1316323	best: 0.1316323 (8)	total: 78.8ms	remaining: 8.76ms
9:	learn: 0.1180861	test: 0.1258048	best: 0.1258048 (9)	total: 87.5ms	remaining: 0us

bestTest = 0.1258048004
bestIteration = 9


Test  Accuracy : 0.97
Train Accuracy : 0.97

18. How to Train CatBoost Model on GPU?

Catboost let us run the training process on GPU. It lets us run the training process on a single GPU or even on multiple GPUs in parallel.

In order to run training on GPU, we need to set the task_type parameter of estimators to GPU. We can provide the devices parameter with a list of the below-mentioned values to run the training process on single/multiple GPUs.

  • Single GPU - [id1] - e.g : "1" - It'll use GPU with id 1 for training.
  • List of GPUs - [id1]:[id3]:[id5] - e.g : "1:3:5" - It'll use GPUs with id 1, 3 and 5 for training.
  • Range of GPUs - [id1]:[id3] - e.g : "1-3" - It'll use GPUs with id 1, 2 and 3 for training.

We can get the count of GPUs present on the system using the get_gpu_device_count() method of the utils module.

from catboost import utils

gpu_cnt = utils.get_gpu_device_count()

print("Number of GPU Count : ",gpu_cnt)
Number of GPU Count :  1

Below we have explained with simple examples of how we can use GPU for the training process.

from catboost import Pool
from catboost.utils import eval_metric

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

train_data = Pool(X_train, Y_train)
test_data = Pool(X_test, Y_test)

booster = CatBoost({'verbose':10, 'iterations':100, 'task_type':"GPU", 'devices':'0'})
booster.fit(train_data)
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%eval_metric(Y_test, test_preds, "R2")[0])
print("Train R2 : %.2f"%eval_metric(Y_train, train_preds, "R2")[0])
Learning rate set to 0.250194
0:	learn: 7.5374429	total: 16.6ms	remaining: 1.65s
10:	learn: 2.7801408	total: 65.7ms	remaining: 532ms
20:	learn: 2.0818499	total: 114ms	remaining: 429ms
30:	learn: 1.7069672	total: 163ms	remaining: 363ms
40:	learn: 1.5225117	total: 212ms	remaining: 305ms
50:	learn: 1.3526526	total: 263ms	remaining: 253ms
60:	learn: 1.1985452	total: 312ms	remaining: 200ms
70:	learn: 1.0589672	total: 361ms	remaining: 147ms
80:	learn: 0.9428833	total: 410ms	remaining: 96.1ms
90:	learn: 0.8402823	total: 458ms	remaining: 45.3ms
99:	learn: 0.7629917	total: 504ms	remaining: 0us

Test  R2 : 0.86
Train R2 : 0.99
from catboost import CatBoostRegressor

X_train, X_test, Y_train, Y_test = train_test_split(boston.data, boston.target, train_size=0.9, random_state=123)

booster = CatBoostRegressor(iterations=100, verbose=10, task_type="GPU", devices="0")

booster.fit(X_train, Y_train, eval_set=(X_test, Y_test))
booster.set_feature_names(boston.feature_names)

test_preds = booster.predict(X_test)
train_preds = booster.predict(X_train)

print("\nTest  R2 : %.2f"%booster.score(X_test, Y_test))
print("Train R2 : %.2f"%booster.score(X_train, Y_train))
Learning rate set to 0.191091
0:	learn: 7.8653512	test: 10.0828261	best: 10.0828261 (0)	total: 56.8ms	remaining: 5.62s
10:	learn: 3.1914457	test: 5.2116555	best: 5.2116555 (10)	total: 431ms	remaining: 3.48s
20:	learn: 2.3058749	test: 4.4116229	best: 4.4116229 (20)	total: 602ms	remaining: 2.27s
30:	learn: 1.9493499	test: 4.2799673	best: 4.2799673 (30)	total: 690ms	remaining: 1.54s
40:	learn: 1.7352761	test: 4.1593650	best: 4.1593650 (40)	total: 787ms	remaining: 1.13s
50:	learn: 1.5262644	test: 4.1012897	best: 4.0934527 (47)	total: 881ms	remaining: 847ms
60:	learn: 1.3843874	test: 4.0436441	best: 4.0436441 (60)	total: 978ms	remaining: 625ms
70:	learn: 1.3190212	test: 4.0293323	best: 4.0293323 (70)	total: 1.09s	remaining: 446ms
80:	learn: 1.2506546	test: 4.0181813	best: 4.0037107 (75)	total: 1.19s	remaining: 279ms
90:	learn: 1.1381610	test: 4.0142571	best: 3.9918756 (86)	total: 1.31s	remaining: 130ms
99:	learn: 1.0572261	test: 4.0196702	best: 3.9918756 (86)	total: 1.37s	remaining: 0us
bestTest = 3.991875569
bestIteration = 86
Shrink model to first 87 iterations.

Test  R2 : 0.86
Train R2 : 0.98
Sunny Solanki  Sunny Solanki

YouTube Subscribe Comfortable Learning through Video Tutorials?

If you are more comfortable learning through video tutorials then we would recommend that you subscribe to our YouTube channel.

Need Help Stuck Somewhere? Need Help with Coding? Have Doubts About the Topic/Code?

When going through coding examples, it's quite common to have doubts and errors.

If you have doubts about some code examples or are stuck somewhere when trying our code, send us an email at coderzcolumn07@gmail.com. We'll help you or point you in the direction where you can find a solution to your problem.

You can even send us a mail if you are trying something new and need guidance regarding coding. We'll try to respond as soon as possible.

Share Views Want to Share Your Views? Have Any Suggestions?

If you want to

  • provide some suggestions on topic
  • share your views
  • include some details in tutorial
  • suggest some new topics on which we should create tutorials/blogs
Please feel free to contact us at coderzcolumn07@gmail.com. We appreciate and value your feedbacks. You can also support us with a small contribution by clicking DONATE.
